Ampd Bros | SKU: ABBIK-AX-STR-S4-BLK

Ampd Bros ACE-X Street Electric Fat Tyre Bike

$2,990.00

Tax included Shipping calculated at checkout.

Colour

Midnight Black Electric Blue Burnt Orange Hot Pink

Product variants

Key Bike Specs:

Ride Style: Cruise
Frame: Step-Over
Wheel Size: 20"
Weight (kg): 32.3
Suspension: Fixed (no suspension)
Motor(s): Rear Hub Motor
Max Continuous Rated Power (Watts): 500
Peak Power (Watts): 750
Torque (Nm): 65
Battery: 52V / 780Wh, 15AH
Brakes: Hydraulic 2-Piston with 180mm Rotor

Compliance:

EPAC Compliance: Non-EPAC - For off-road use only
Electrical System Compliance: UL2849 Certified
Charger Compliance: Complies with Australian Standards
Motor Cut-off Speed:

Motor cuts-off automatically at 25km/h in on-road mode/s - and this can be locked with unique password

Hand Throttle Operation (where fitted):

Hand throttle does not disable automatically at 6km/h
Hand throttle not fitted at factory - optional accessory
Walk mode button can be used, and disables automatically at 6km/h

Max Continuous Power Adjustability:

Max continuous power can be locked to 250W - as well as higher levels for offroad use - with unique password

Compliance Description:
This bike does not meet the definition of an Electrically Power-Assisted Cycle (EPAC), and is not intended for use on public roads or shared paths.
It is designed exclusively for off-road and private property environments.
It is not a road-registered vehicle.
Owners and riders are responsible for ensuring their bike and use complies with applicable local laws.
Consult your local authorities and laws before purchasing or operating.

Free Shipping over $149 + Pickup + More!

At Beaches Bike Co, we make it easy to get your new gear fast!

Free Standard Metro Delivery on all orders $149 and over.

For orders under $149, choose:
Standard Post: $12 flat rate (metro only) or
Express Post: $19 flat rate (metro only)

Free Local Drop-Off on the Northern Beaches

Live near us? If you’re within 5km of our Manly store, we’ll personally drop off your order for free.

Just select Local Drop-Off at checkout, and make sure you include a contact phone number and some details.

Free Store Pick-up Options

Manly Store – Pickup during our business hours (see Contact Us page).

See our Shipping Policy for full details.

Easy Returns

At Beaches Bike Co, we want you to love it. If something’s not quite right, we’ll do what we can to make you happy.

Change of Mind Returns:

You may return items within 14 days of receiving your order if you change your mind.

Faulty, Damaged or Incorrect Items:

If your order arrives faulty, damaged or incorrect, please email us at hello@beachesbike.co within 7 days.

See our Returns Policy for full details.

Information requirements for e-micromobility products

Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.

Description

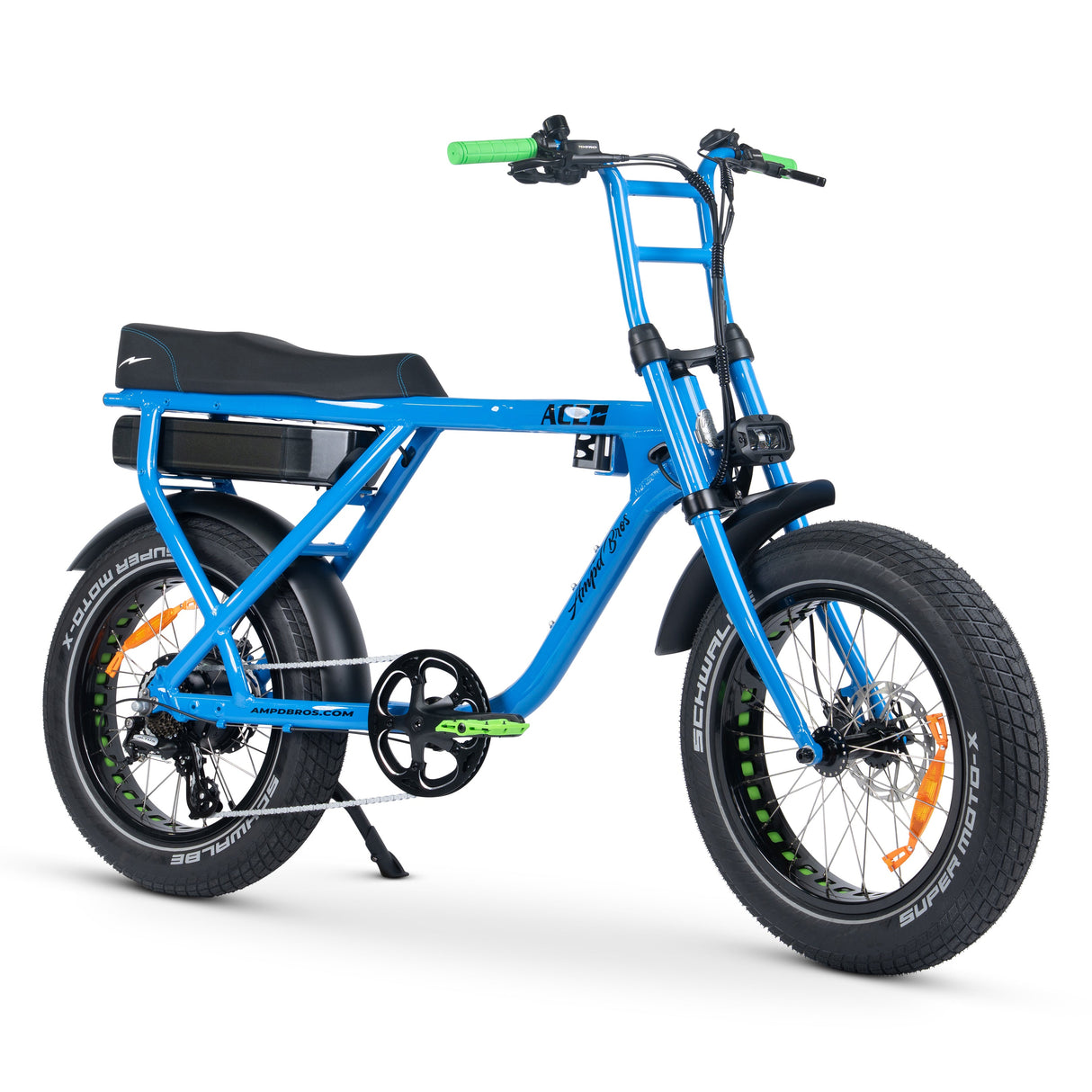

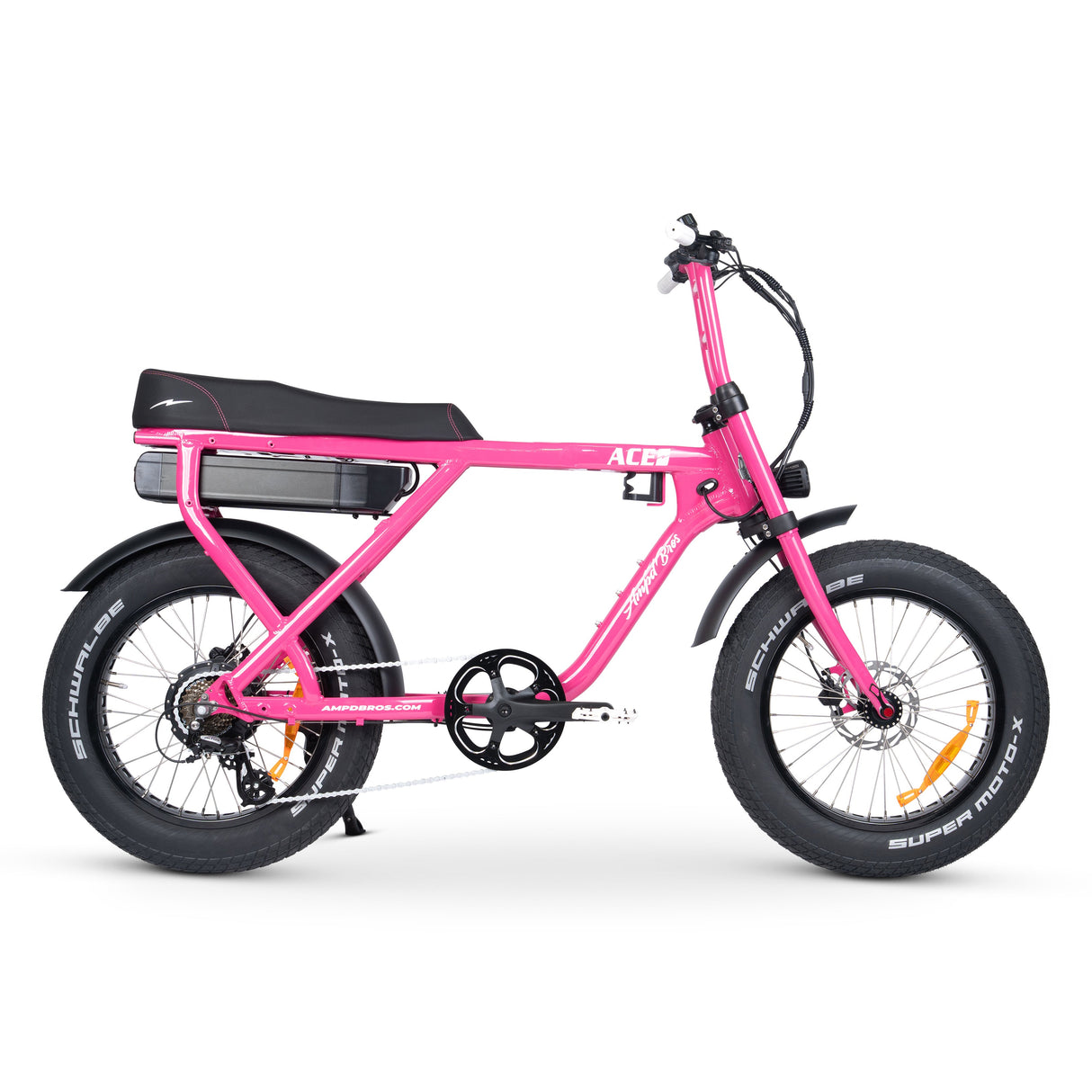

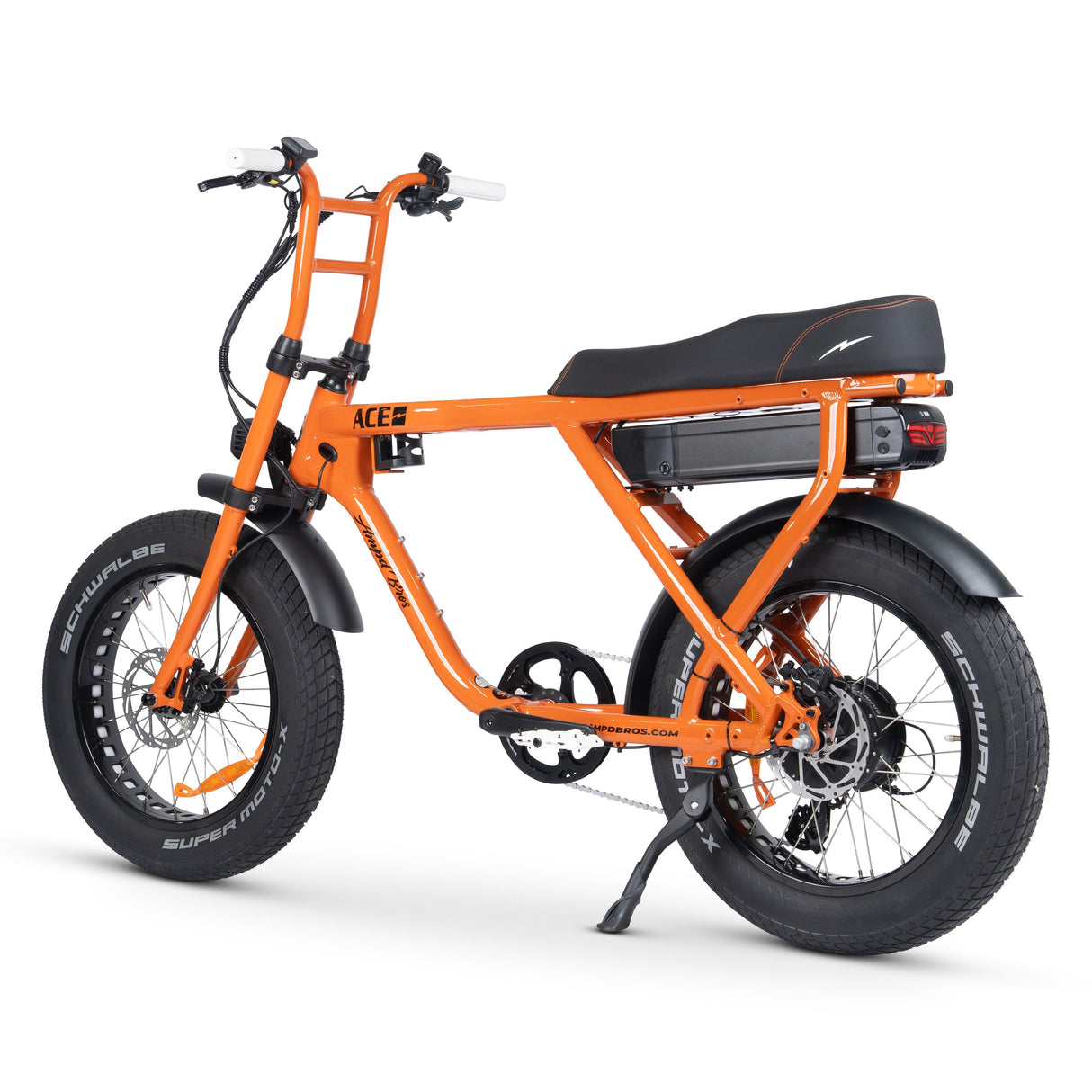

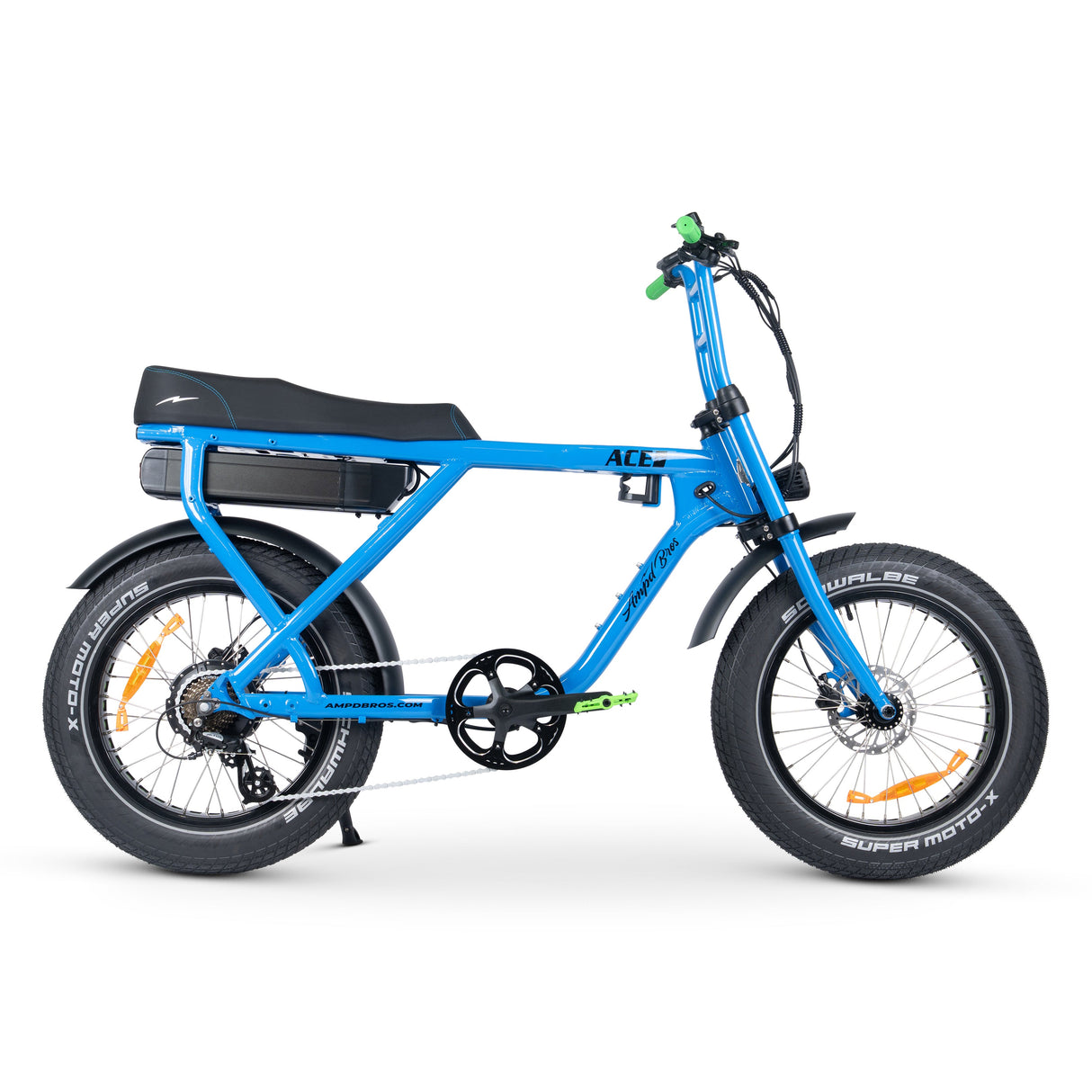

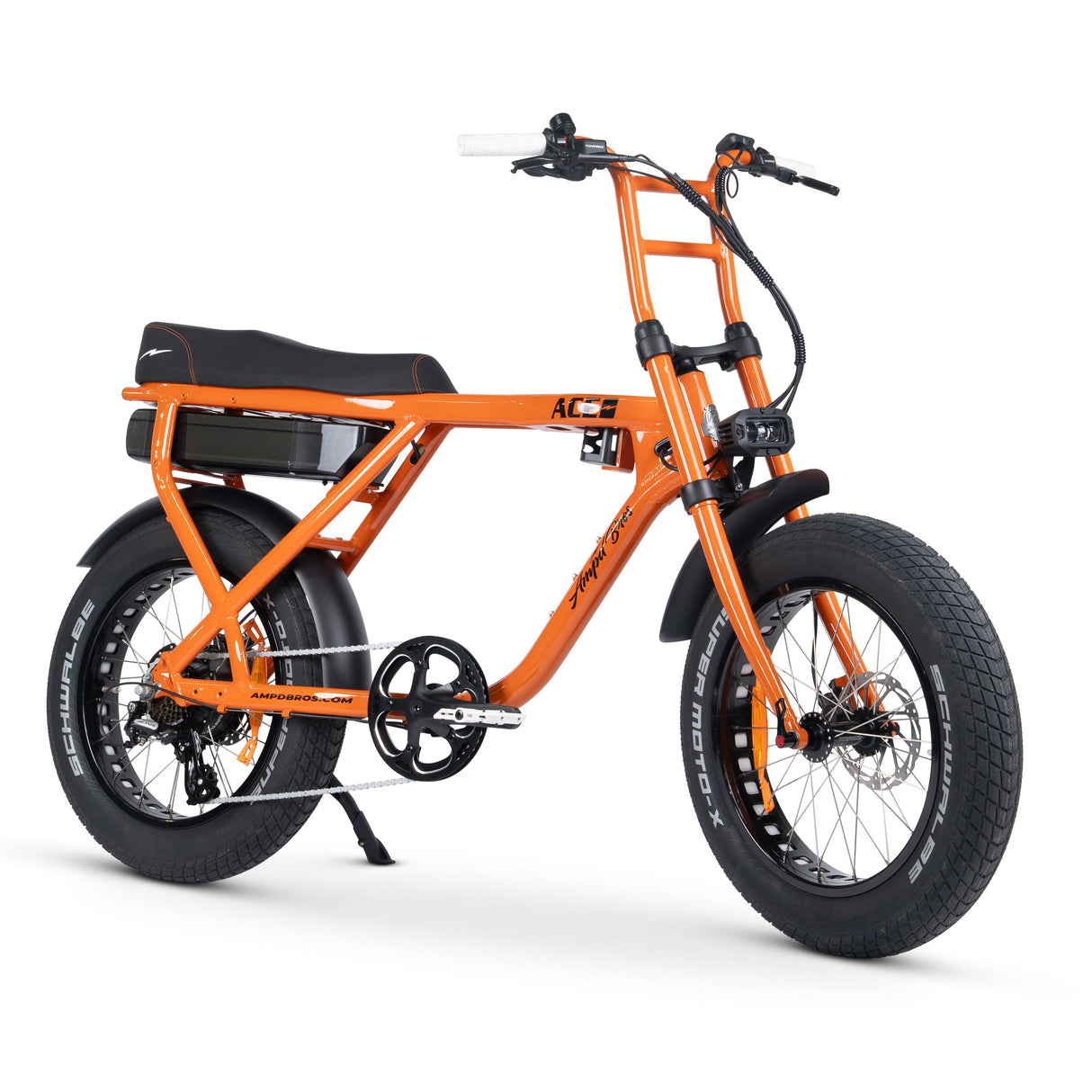

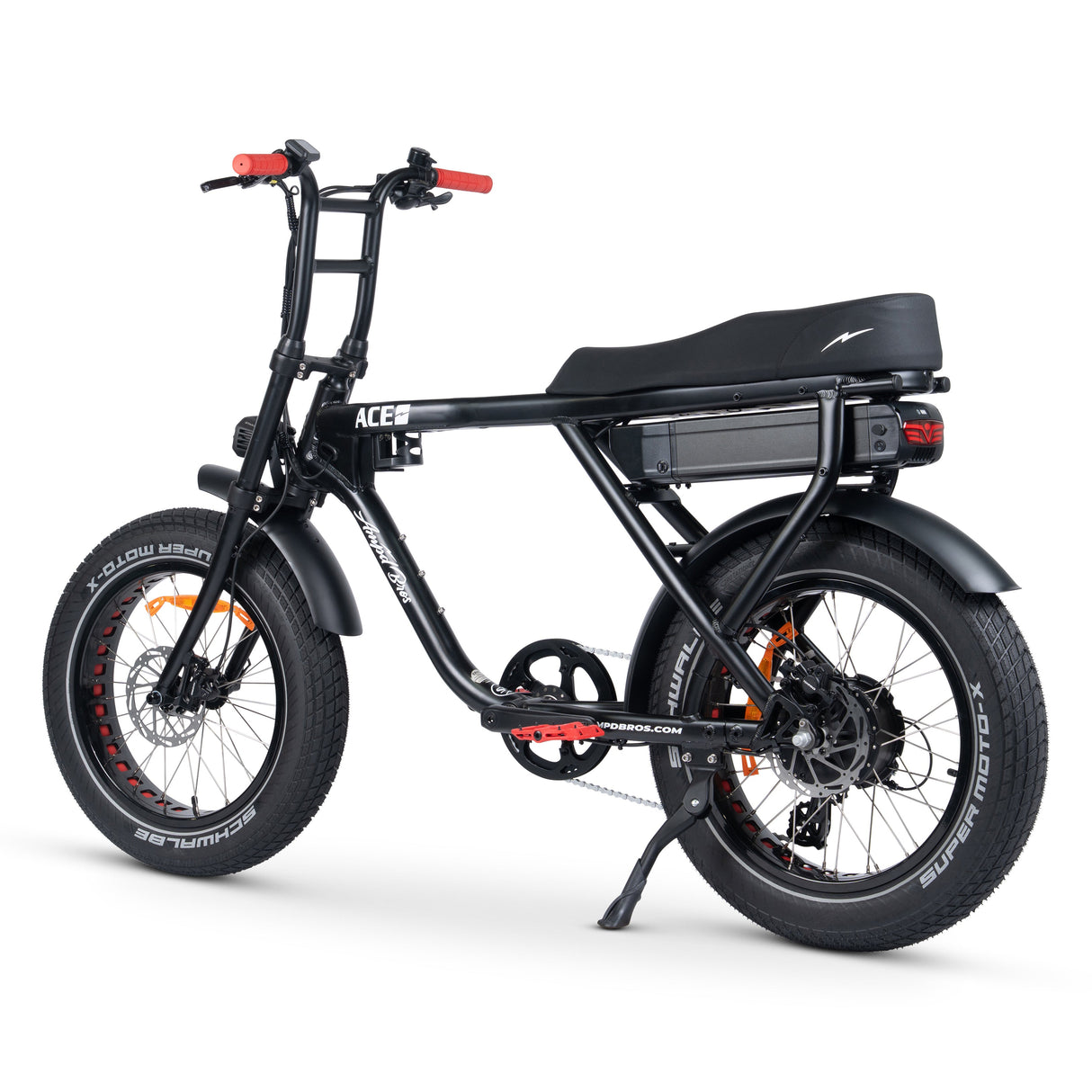

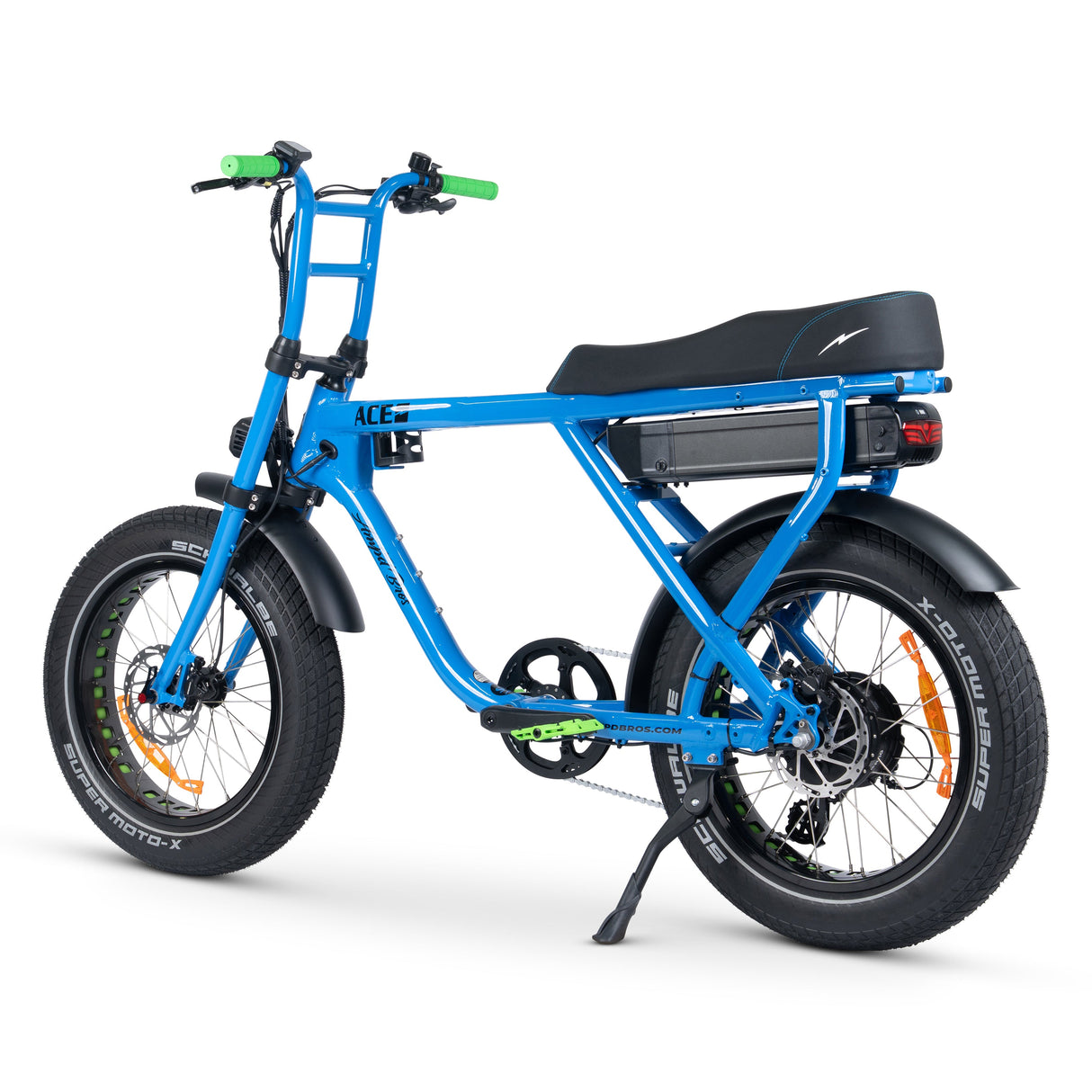

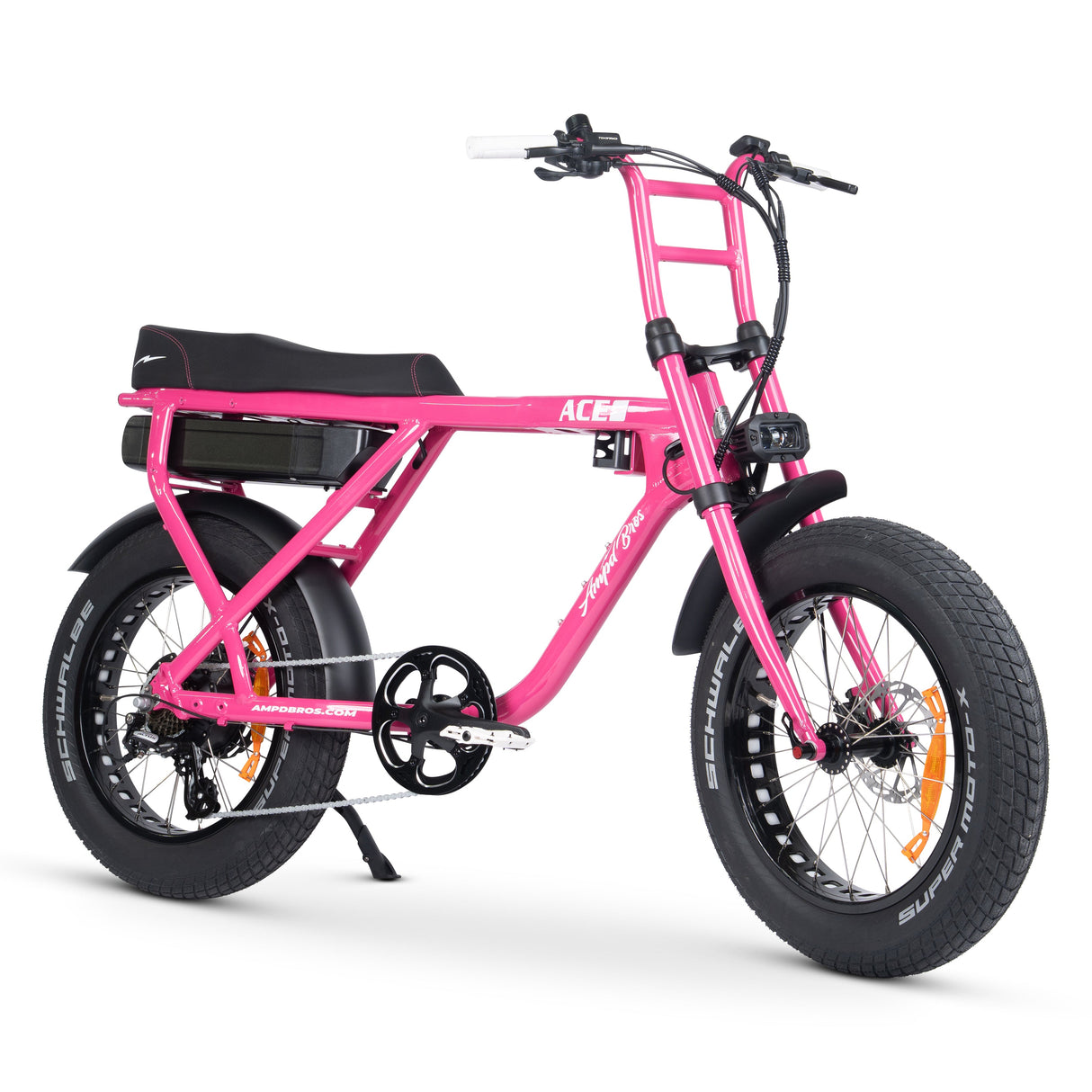

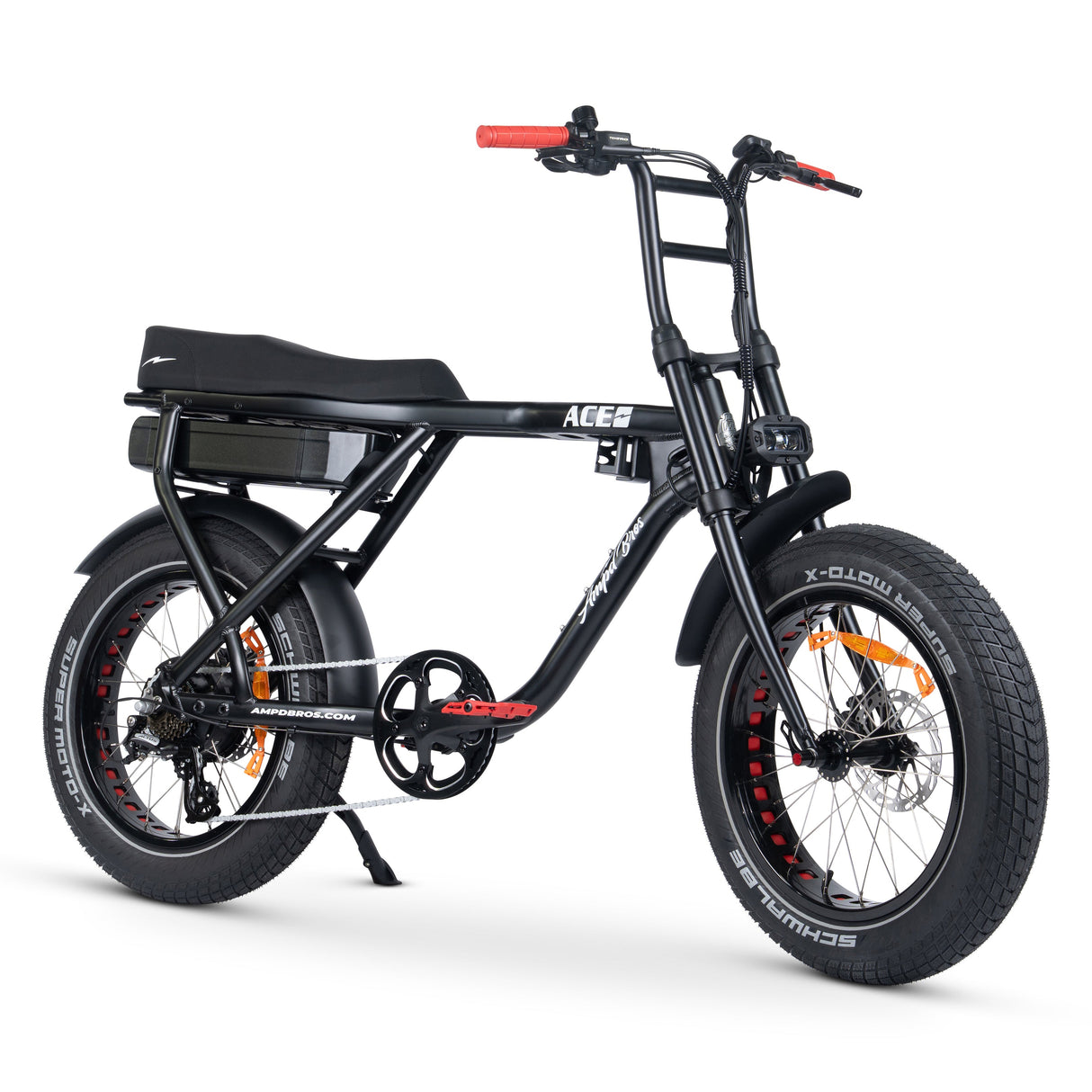

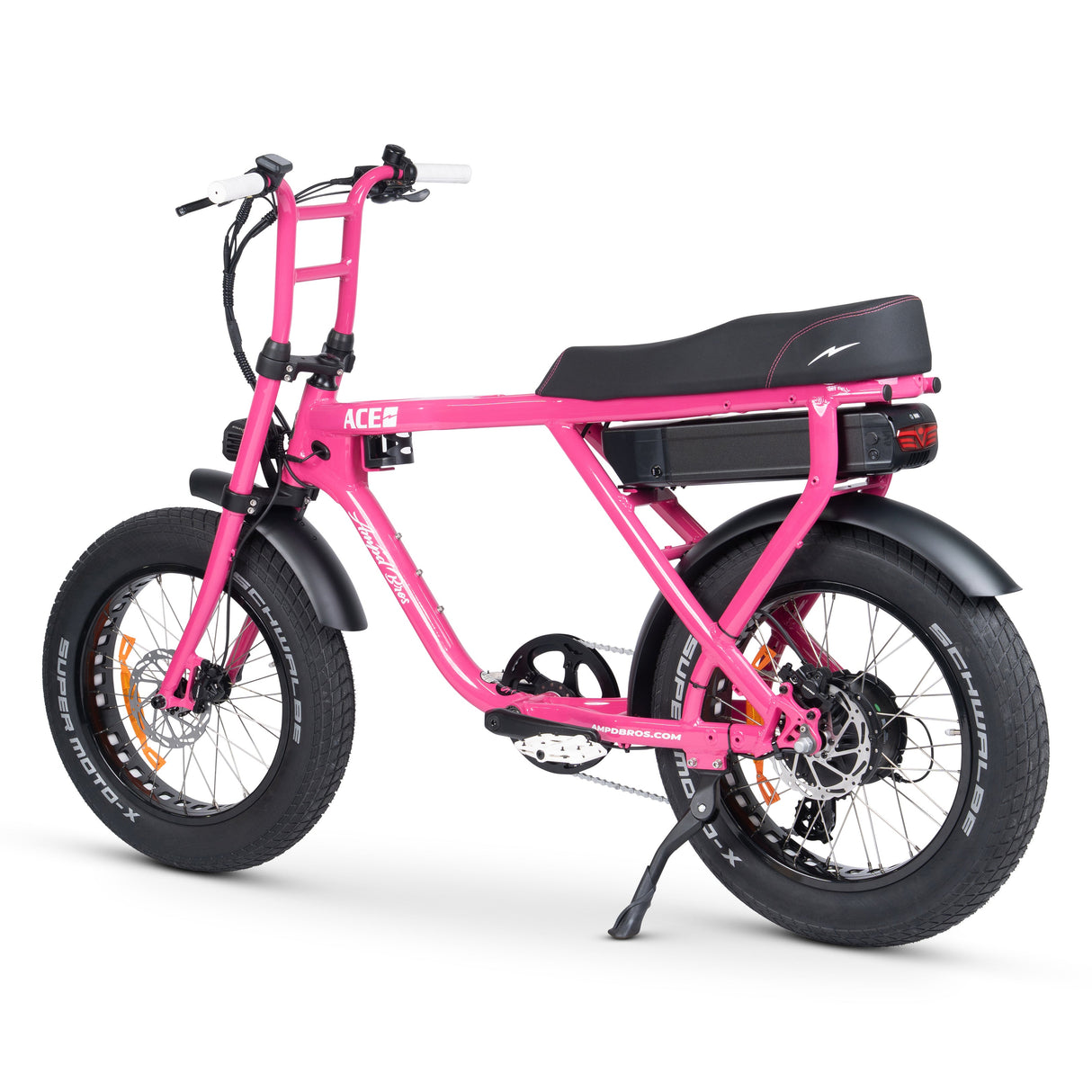

The ACE-X Street electric bike dominates the urban landscape, boasting a fresh 2025 style with vibrant colour combinations.

This ultimate street cruiser delivers attitude, blending power and comfort seamlessly for urban adventures. Equipped with a robust 52V 15AH Samsung battery, it offers extended range for more exhilarating rides.

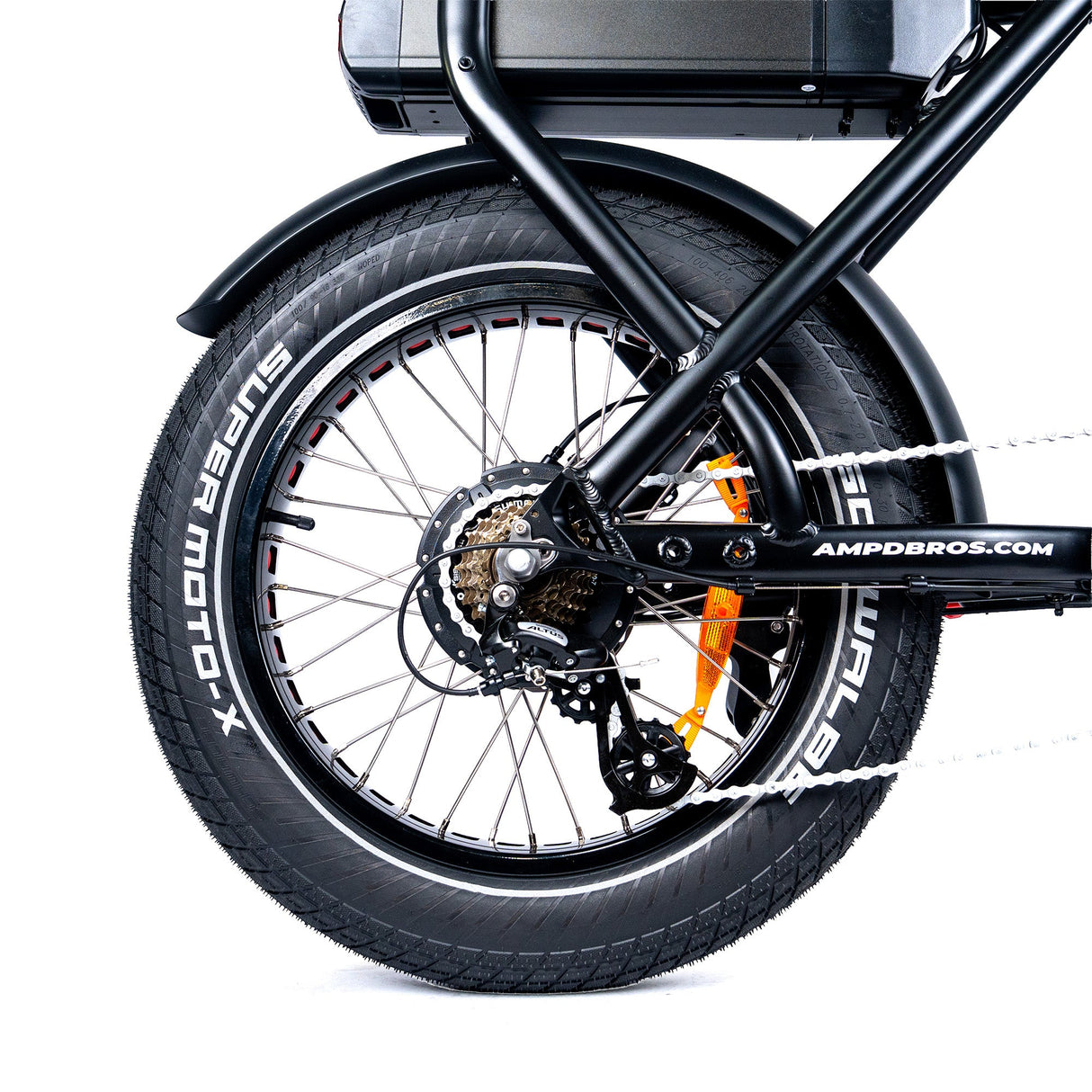

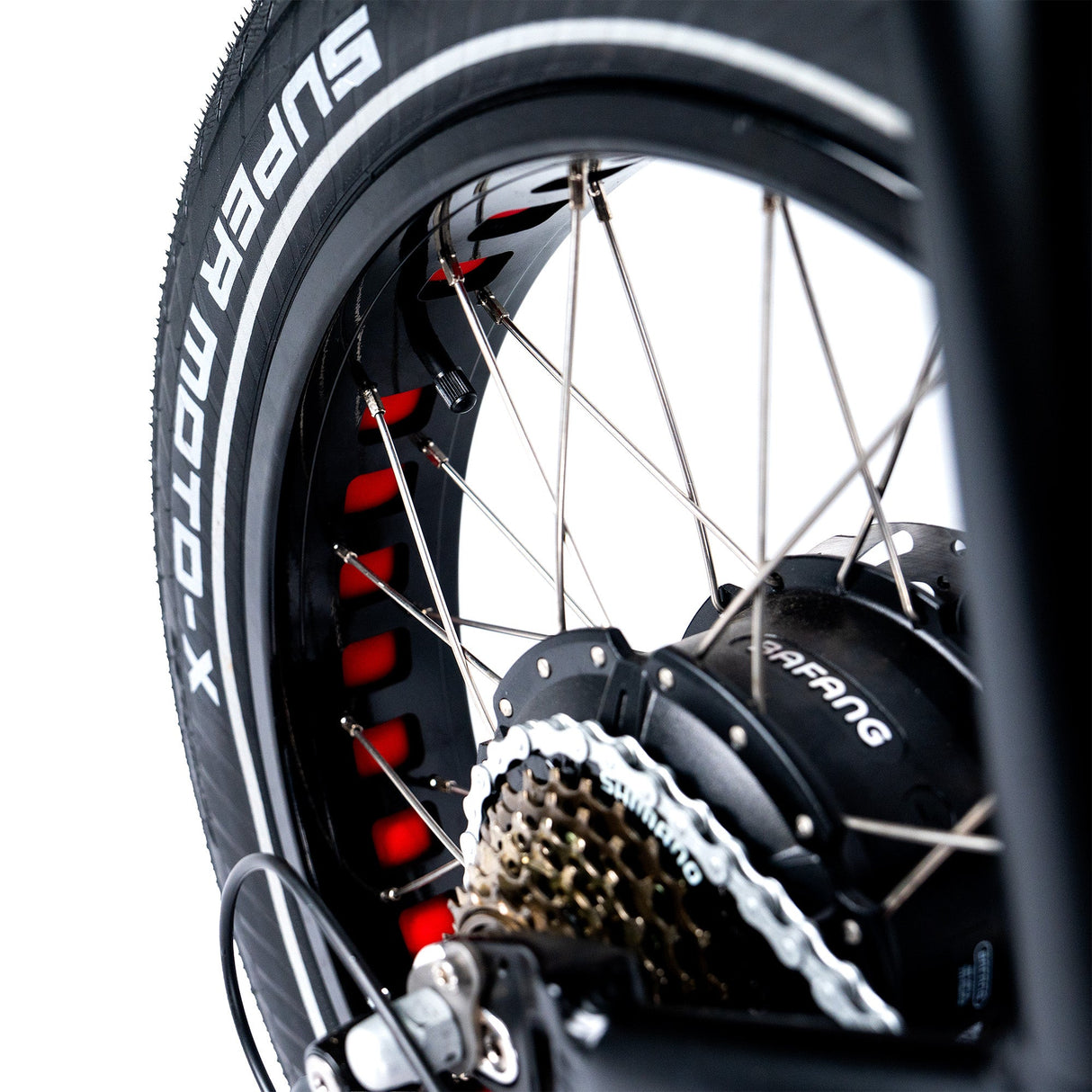

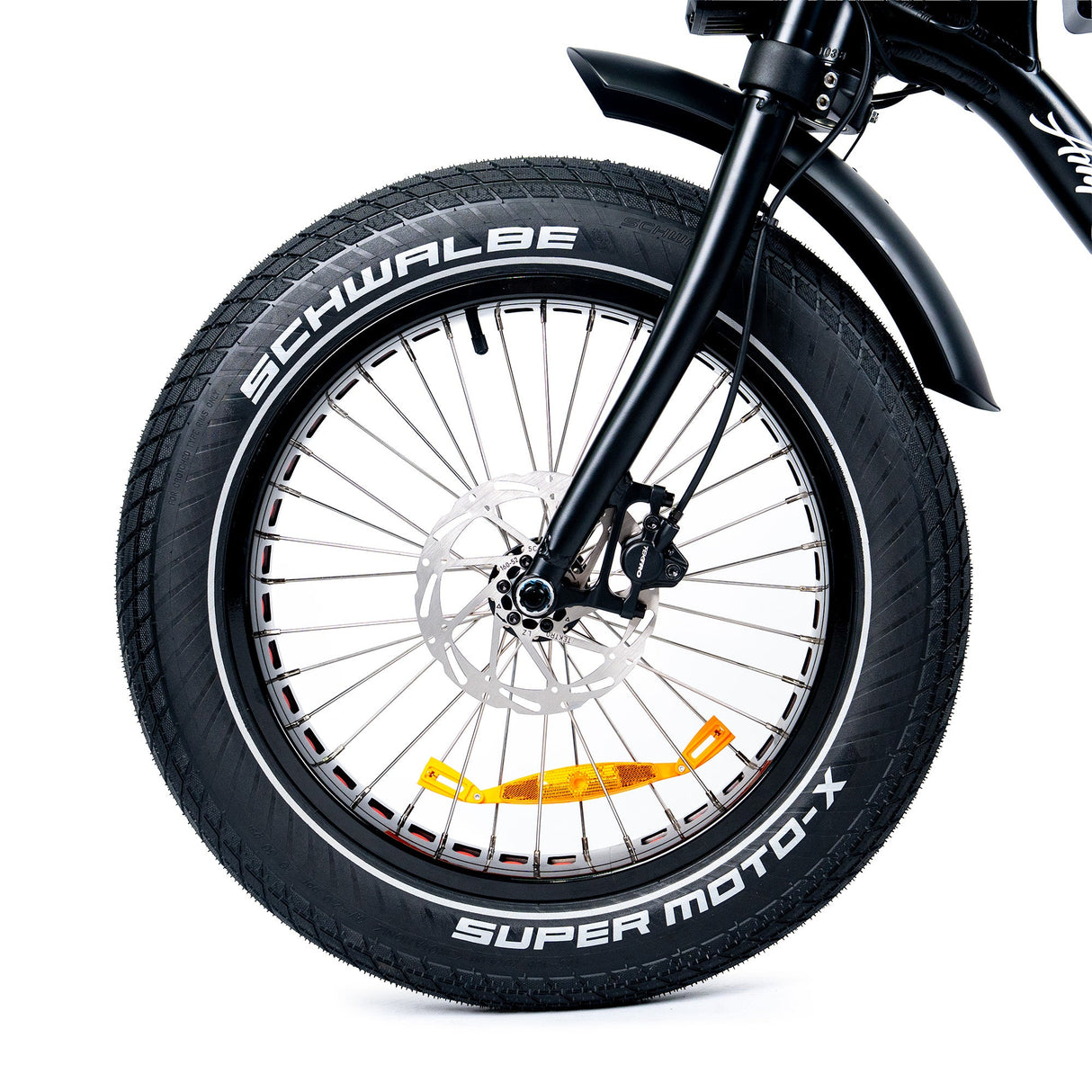

Experience superior grip and a smooth journey thanks to the slick Schwalbe Super Moto X tyres. The high-torque Bafang rear hub motor provides ample power, while Shimano 7-speed gearing ensures versatile performance.

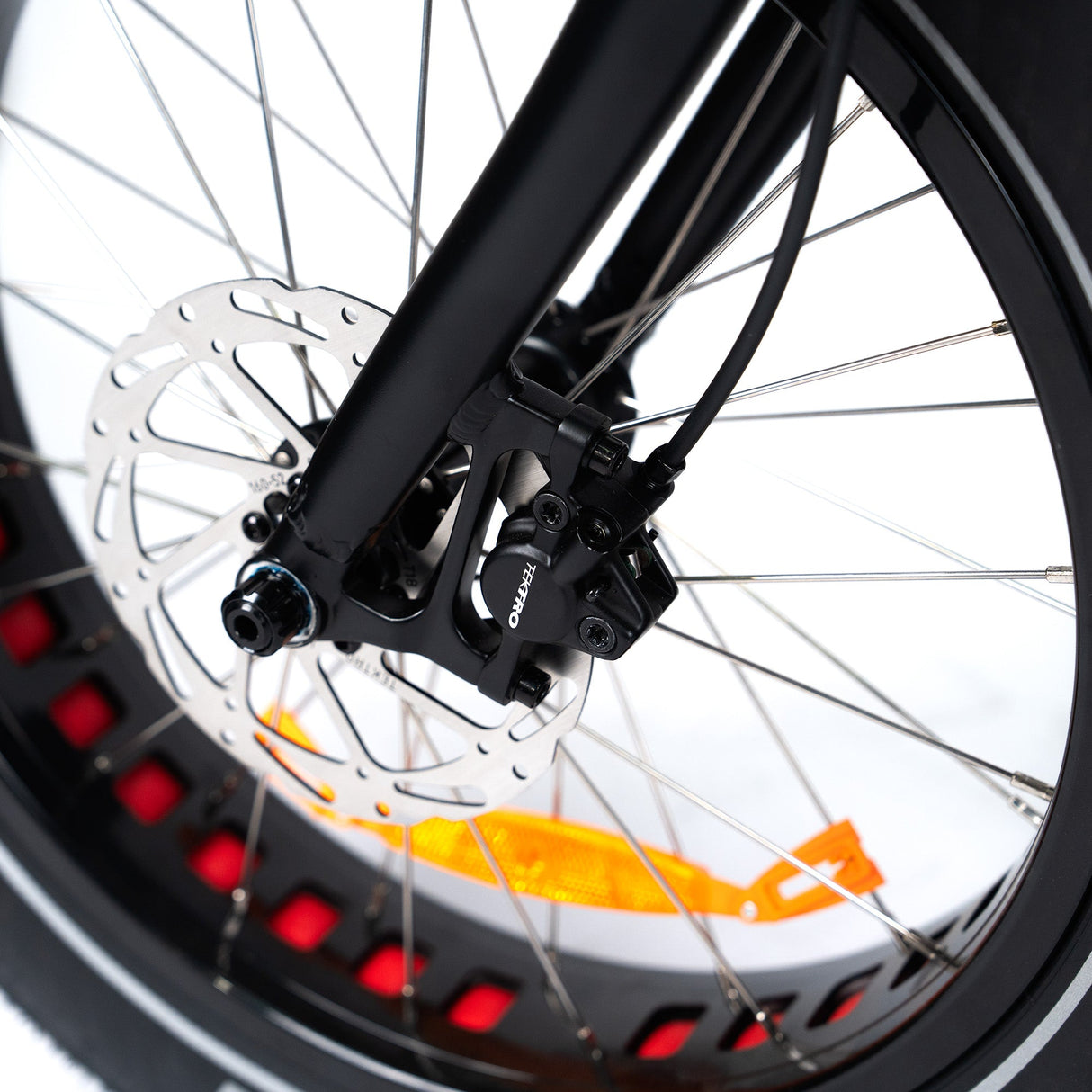

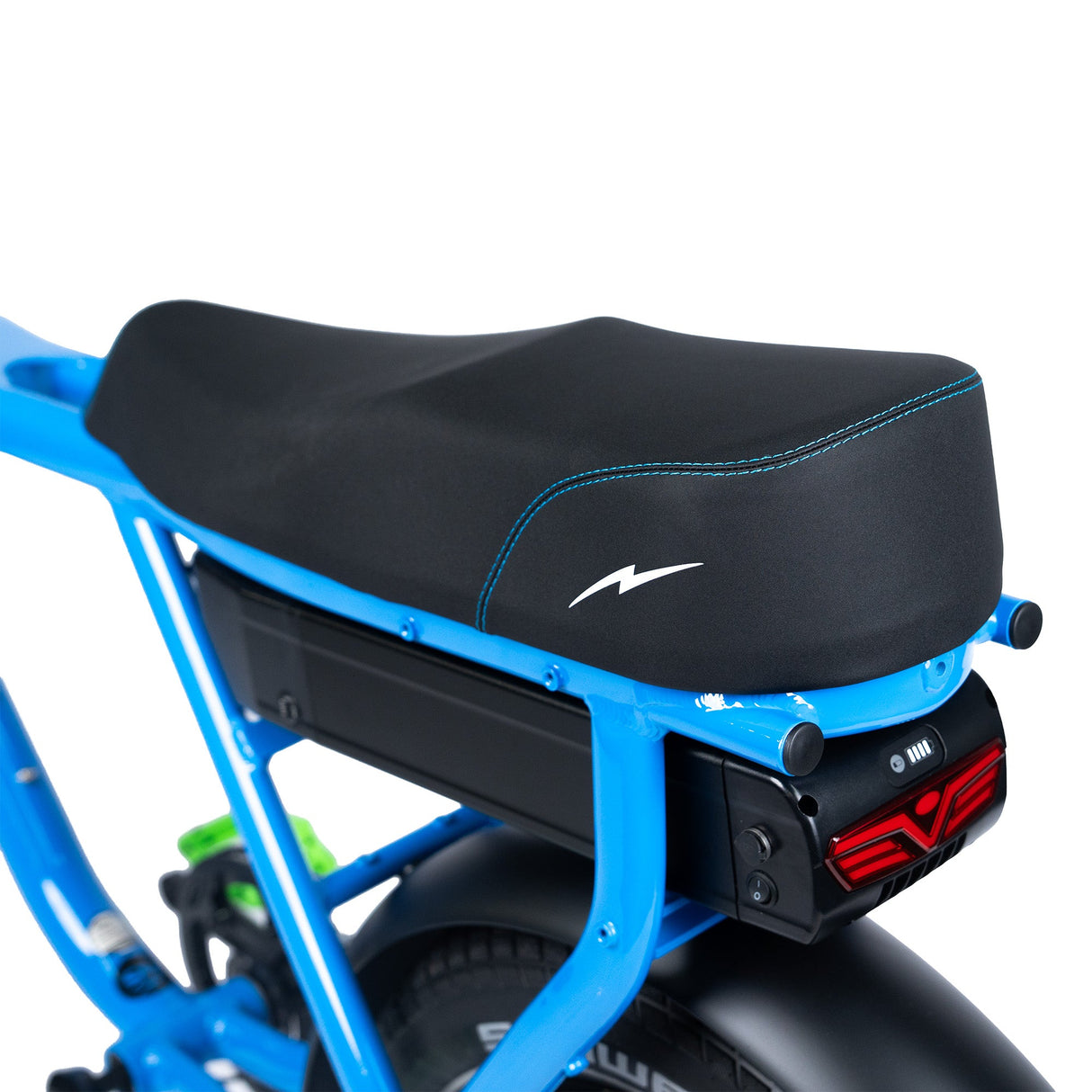

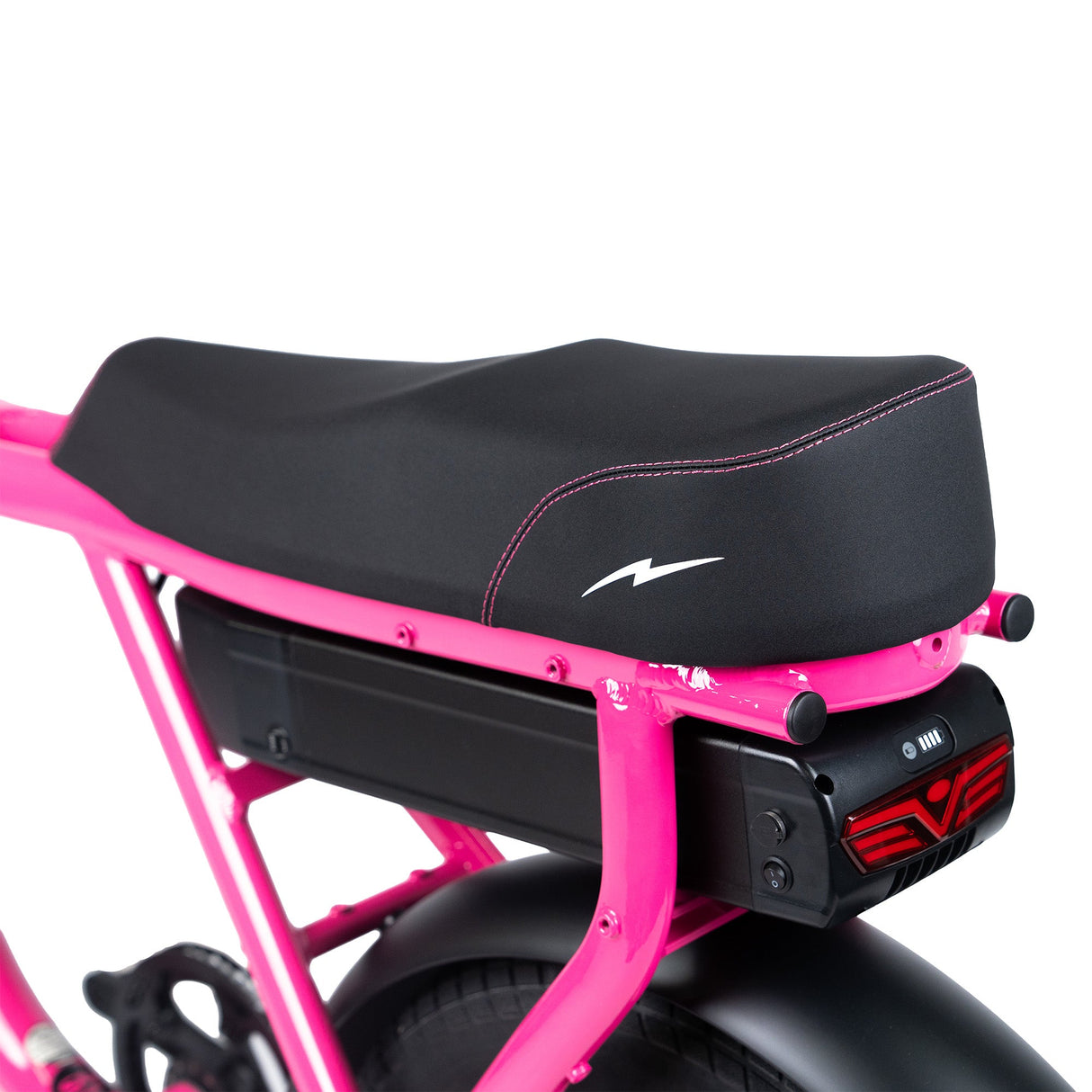

Stopping is a breeze with responsive Tektro hydraulic disc brakes, enhancing safety and control. An intelligent colour display keeps you informed, and the rugged aluminium LED headlight illuminates your path. With a spacious two-person seat and a removable Samsung battery, you can enjoy up to 60km on a single charge.

This bike is perfect for making a bold statement and owning the street with unmistakable style, and it's 500w motor makes it fully street legal for use in NSW to boot!

Motor Type	High Torque Bafang Rear Hub Motor
Battery Capacity	52V 15Ah Samsung (Removable)
Tyre Size	20x4 inch Schwalbe Super Moto X
Braking System	Tektro Hydraulic Disc Brakes
Gear System	Shimano 7-Speed Derailleur
Estimated Range	Up to 60 km
Display Type	Micro Intelligent Colour Display
Lighting	Rugged Aluminium LED Headlight
Seating Capacity	Two riders
Frame Material	Durable Aluminium Alloy
Controller	Custom Master Control Unit

Specifications

ACE SERIES 4
Range
Ace Mini Models 40km+
Ace Standard Models 60km+
Ace Plus/Cargo Models 80km+
Battery
Ace Mini 48V / 480Wh, 10AH
Standard 52V / 780Wh, 15AH
Plus/Cargo 52V / 1,040Wh, 20AH
Samsung Premium 21700 Lithium cells
Battery is removable and can be charged in bike or separately.
Motor Drive
All Models Bafang Rear Hub 250W High Torque Motor
Ace Mini & Standard 65N.m
Ace Plus+ & Cargo 80N.m
All Models Restricted to 25km/h
Controller
Ampd Bro's Custom - Best-in-class power density and state-of-the-art motor control algorithms.
Ace Mini & Standard Rated to 500W / Peak 750W+
ACE Plus/Cargo Rated to 750W / Peak 1,000W+
Ride Modes
Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9
Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
Mode 3 Throttle mode: Available when Optioned with the Off Road Throttle Kit
Features
Hill Ability Up to 15º Degree / 25% Incline PAS

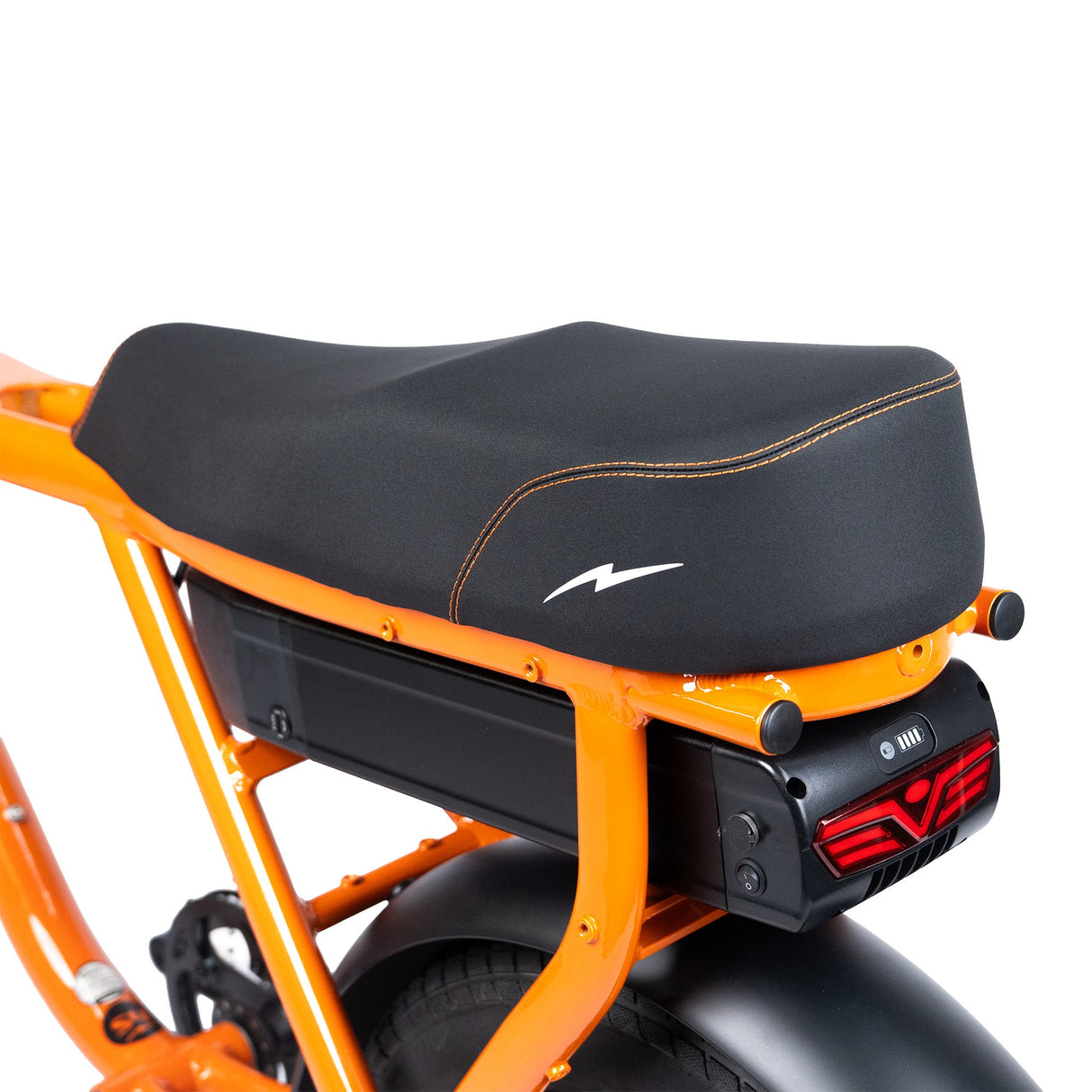

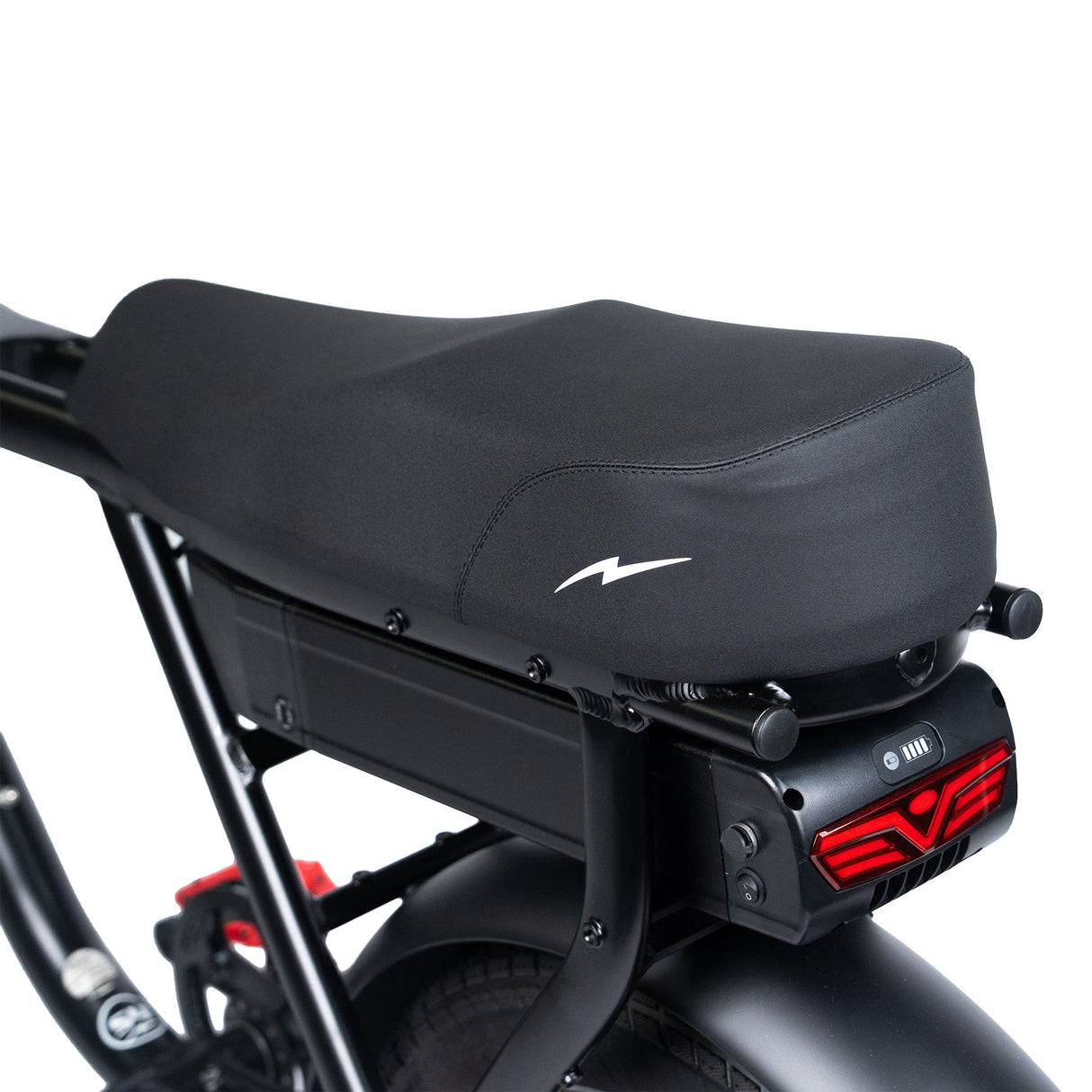

Seat Custom Large Black Dual Seat for 2 Riders
Warranty 2 Years (1 Year on Batteries)
Lights Front LED Headlight with DRL
Lights Rear LED Brake Light inbuilt to battery pack
Grips Black Velo Wide Comfort
Bell Yes
Brakes
Ace Mini Ampd Bros Hydraulic with 160mm Disc
Ace Standard/Plus/Cargo Tektro Hydraulic with 180mm Disc
E-Brakes Yes Motor Safety Cut Off
Display
Colour Micro LCD Multi-Function with ODO, Trip, Battery Level, Speed etc
Drivetrain
Ace Mini Transmission Single Fixed Speed (No Shifter/Derailleur)
All Other Models Transmission Shimano 7 Speed with Rapid Fire Micro Shifter
Derailleur Shimano Altus

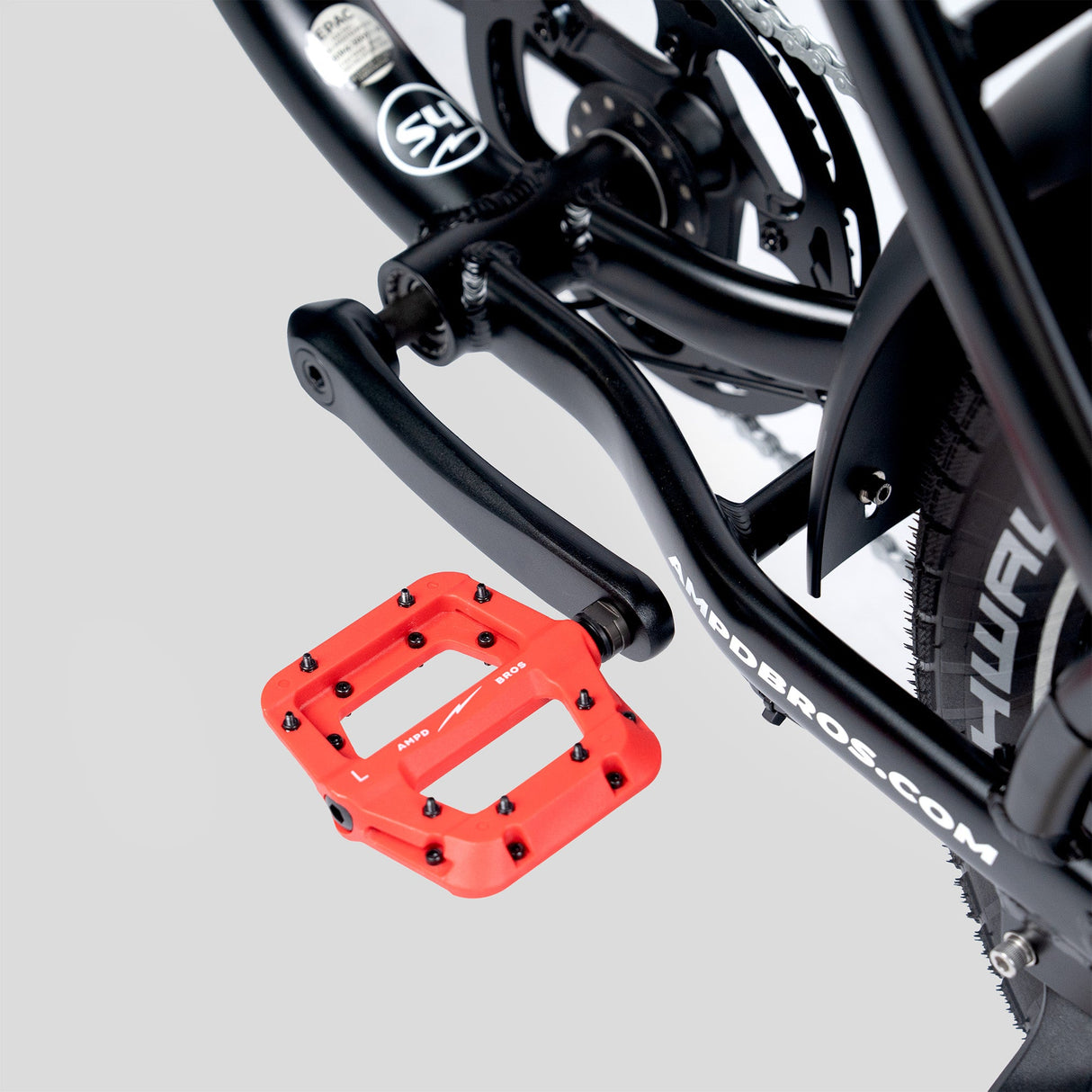

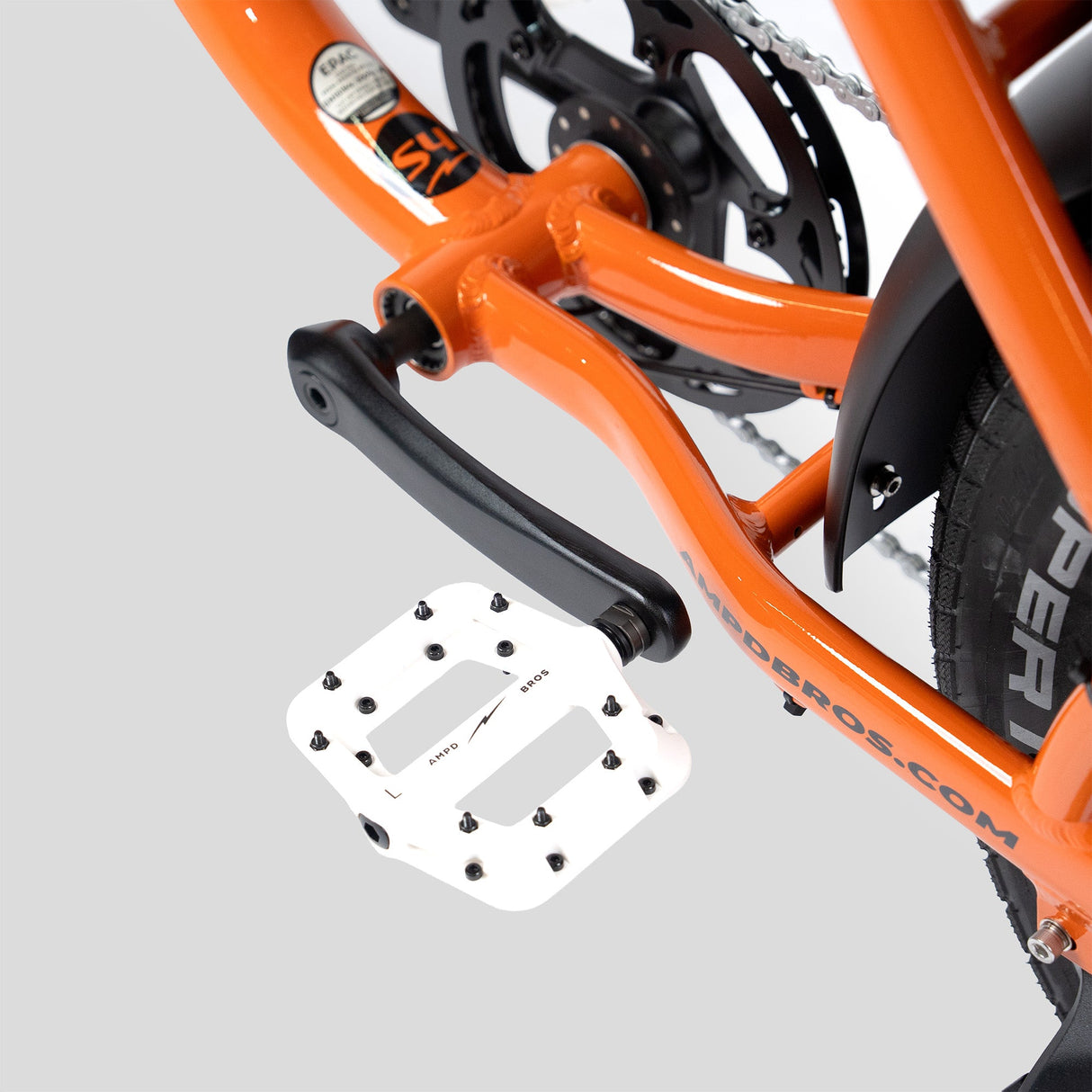

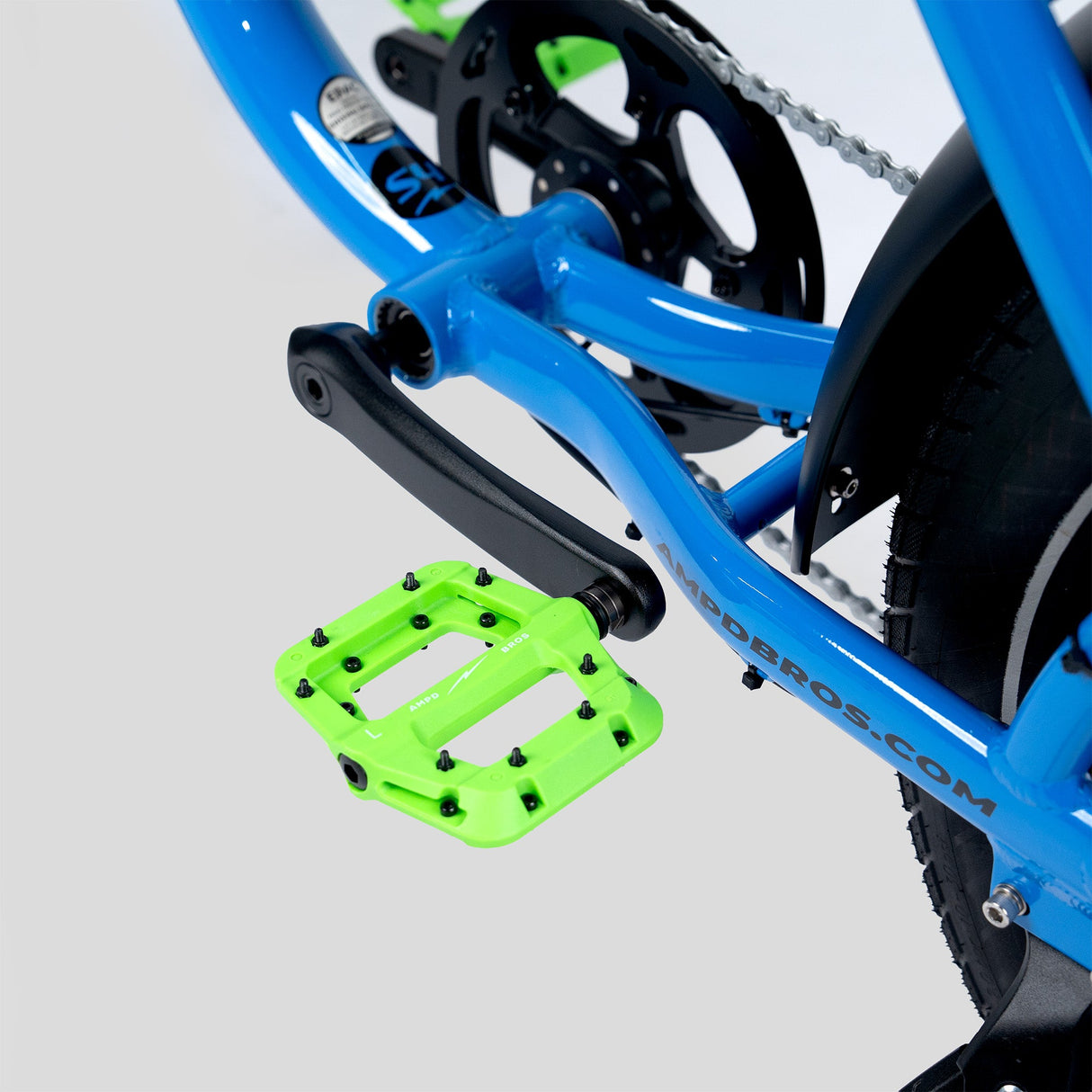

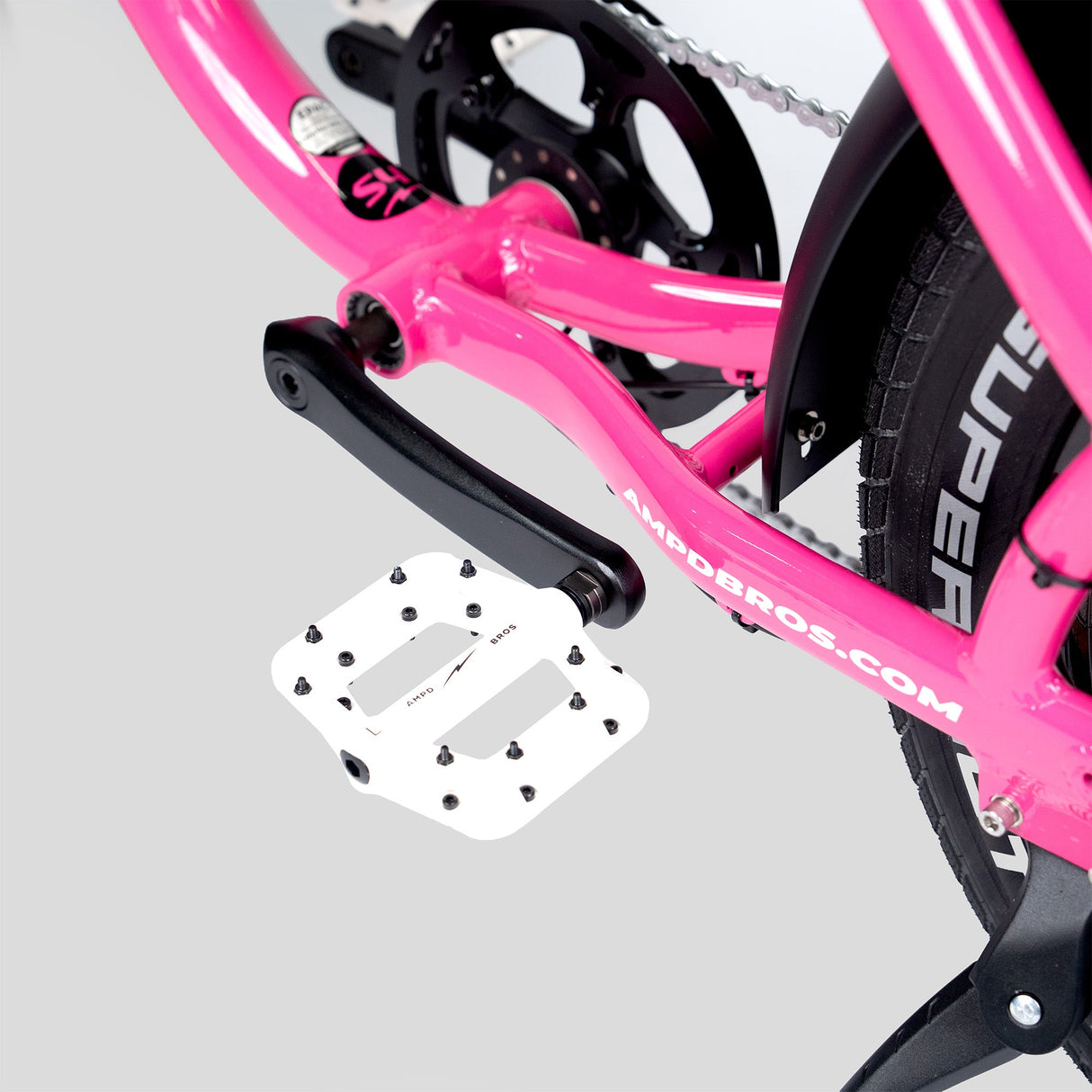

Pedals Wellgo Alloy - Black
Chain KMC Z Series High Performance & Rust Resistant
Construction

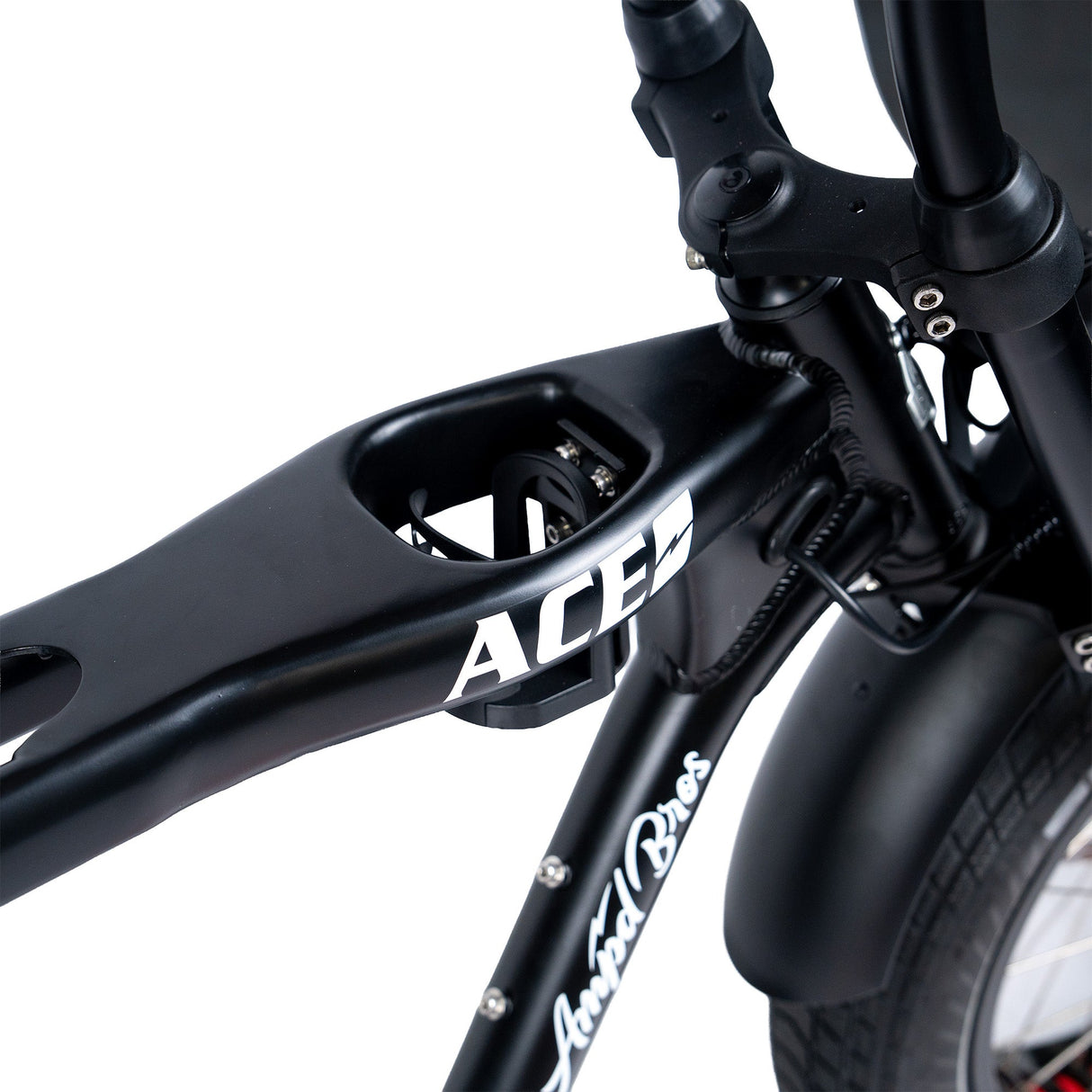

Frame Aluminium - "X" Step Over or "S" Step Through Low Bar Designs
Handlebars Aluminium Motorcycle Inspired with Adjustable Height
Fenders Matte Black Aluminium
Suspension
Mini & Standard Models No Suspension
Plus+ Models Front Custom Tuned Adjustable Fork
Cargo Models Front Independent Suspension Fork (Non Adjustable)
Wheels & Tyres
Ace Mini 16x.40" Innova Mud Tyres
20x4.0" Kenda Krusade Fat Mud Tyres
Charging
5-6hrs 10Ah Batteries with Standard 2A Charger
7-8hrs 15Ah Batteries with Standard 2A Charger
9-10hrs 20Ah Batteries with Standard 3A Charger
Optional 5A Fast Charger Available for 2.5x Faster Charging
Dimensions
Overall Length 1,750 mm
Handlebar Height 1,140 - 1,190 mm
Handlebar Width 660 mm
Seat Height 810 mm Fixed Height
Seat Length 600 mm
Ground Clearance 270 mm
Wheel Base 1,160 mm
Rider Height Ideal for Riders up to 200cm Tall
Ace Mini Dimensions
Overall Length 1,470 mm
Handlebar Height 1040 mm
Handlebar Width 660 mm
Seat Height 770 mm Fixed Height
Seat Length 370 mm
Ground Clearance 190 mm
Wheel Base 990 mm
Rider Height Ideal for Riders up to 170cm Tall
Weights
N.W of 10Ah Battery 3.2kg
N.W of 15Ah Battery 4.34 kg
N.W of 20Ah Battery 5.12 kg
N.W of Standard ACE + Battery 32.3 kg
N.W of ACE Plus+ Battery 36 kg
N.W of ACE Mini + Battery 29 kg
N.W of ACE Cargo + Battery 40.5 kg
Max Loading 180 kg
ACE Mini Max Loading 100 kg
Inclusions
In Box Bike, Battery, Charger, Front Headlight, Basic Tool Kit, Manual, Pedals, Fenders, Seat & Kick Stand.
*Range Achievable may vary based on loading, motor use, throttle/pas, terrain, weather conditions and many other factors.
