Ampd Bros | SKU: ABBIK-AXP-S4-BLK

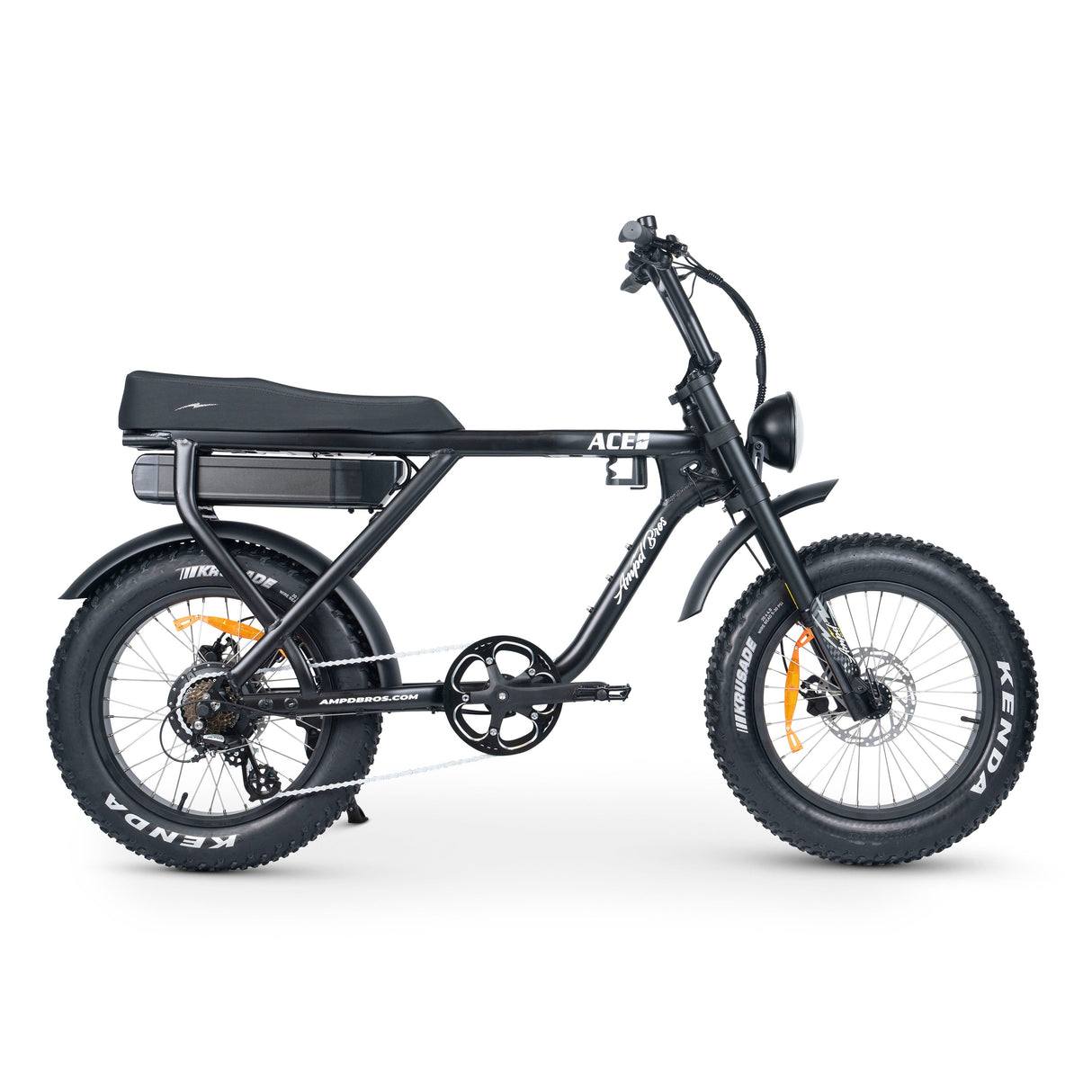

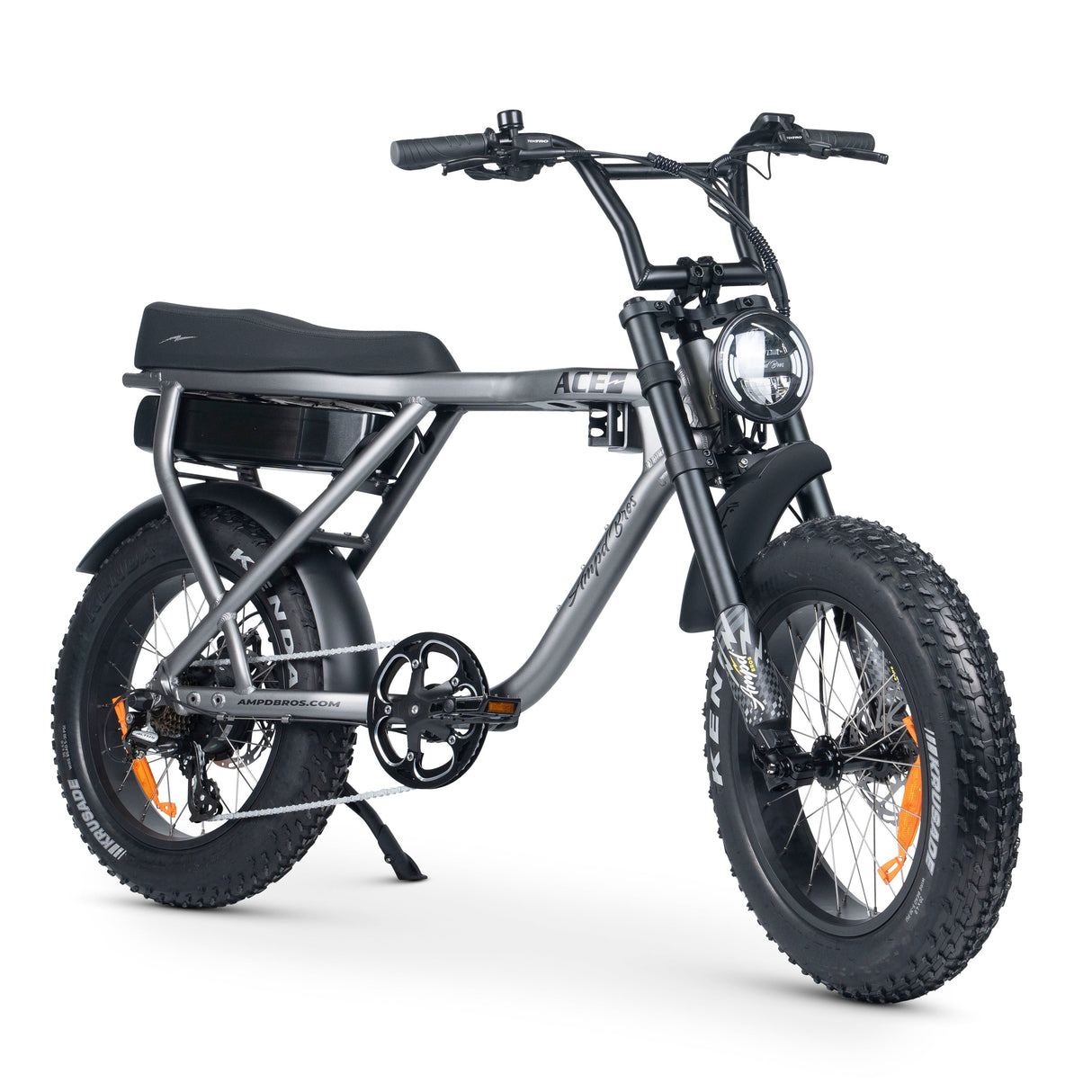

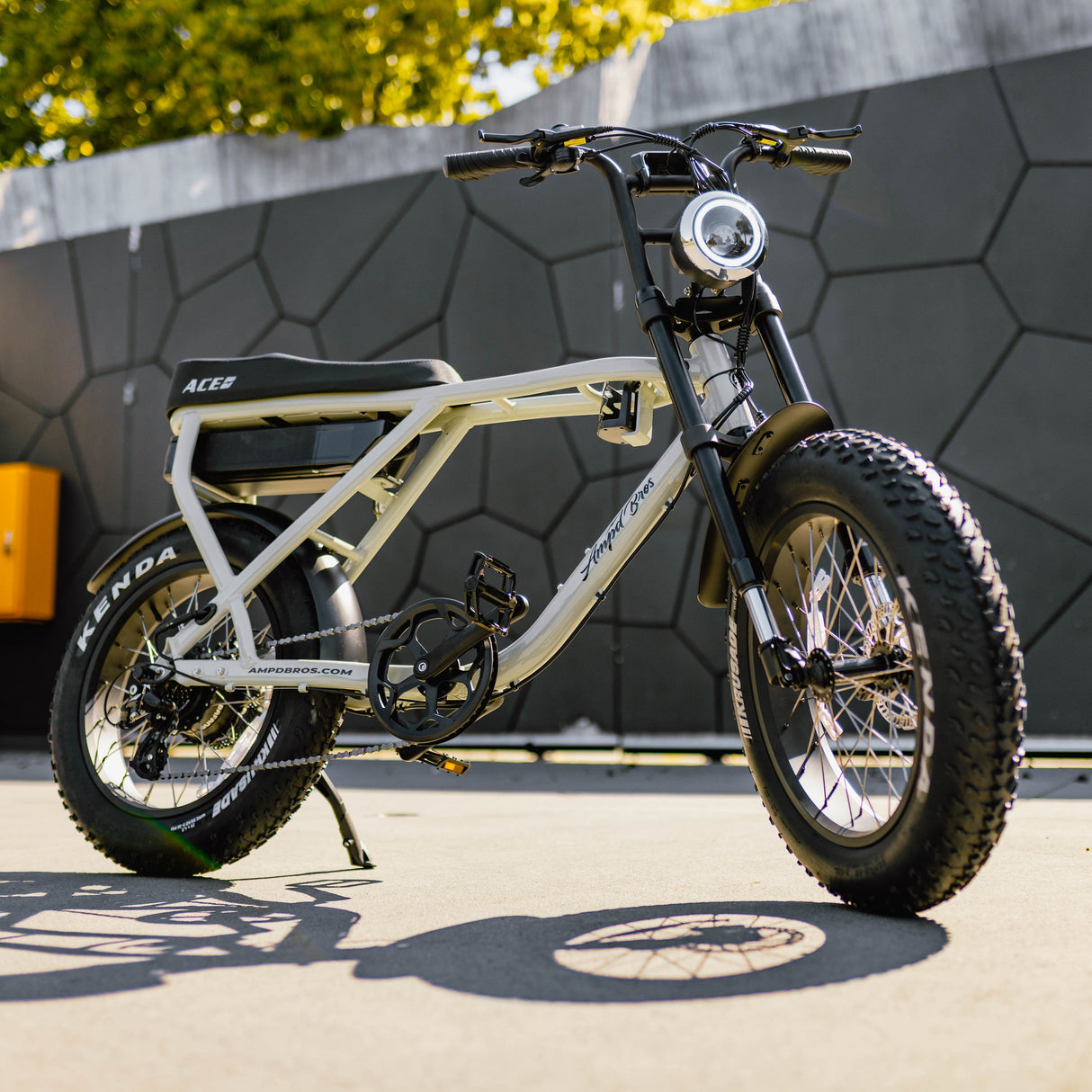

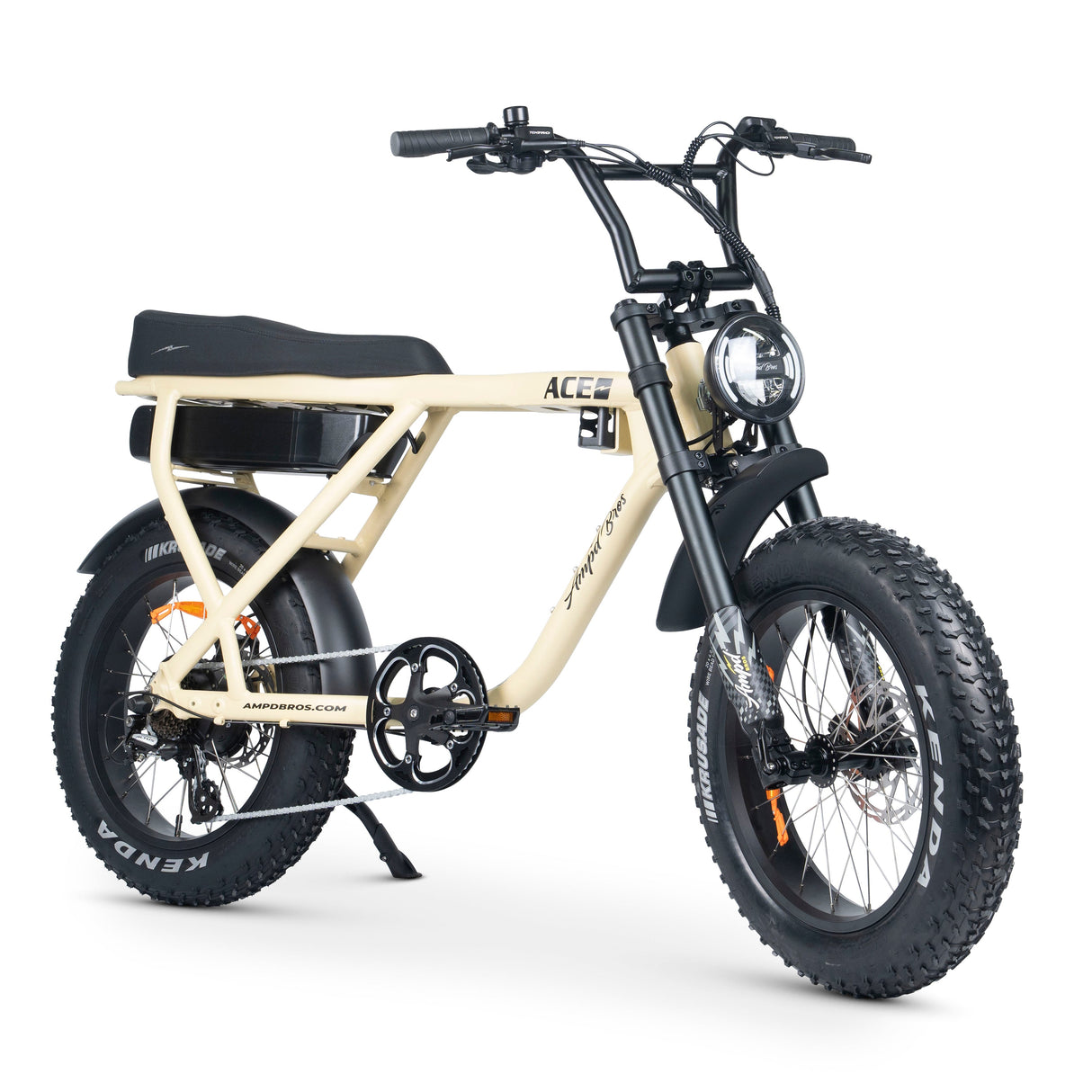

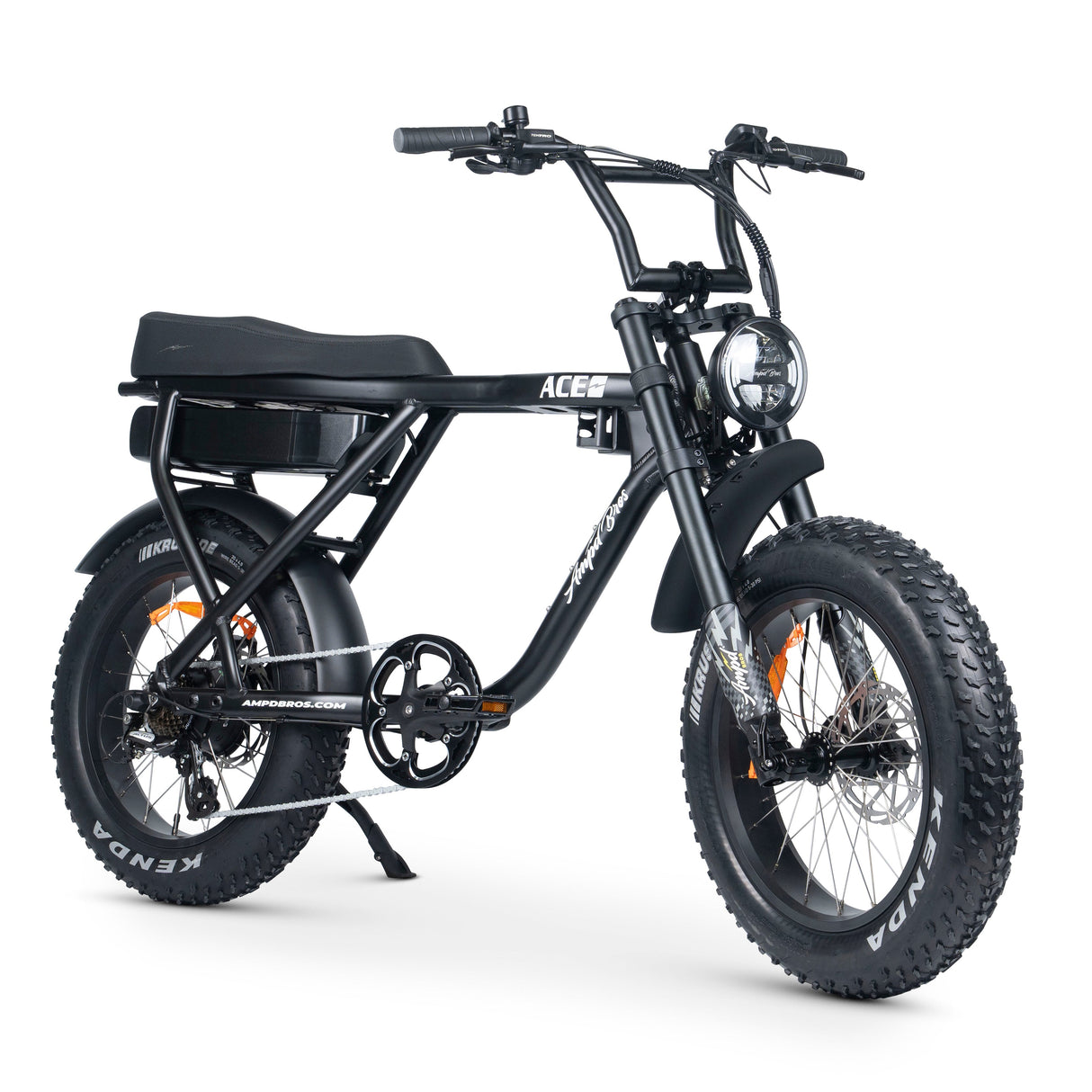

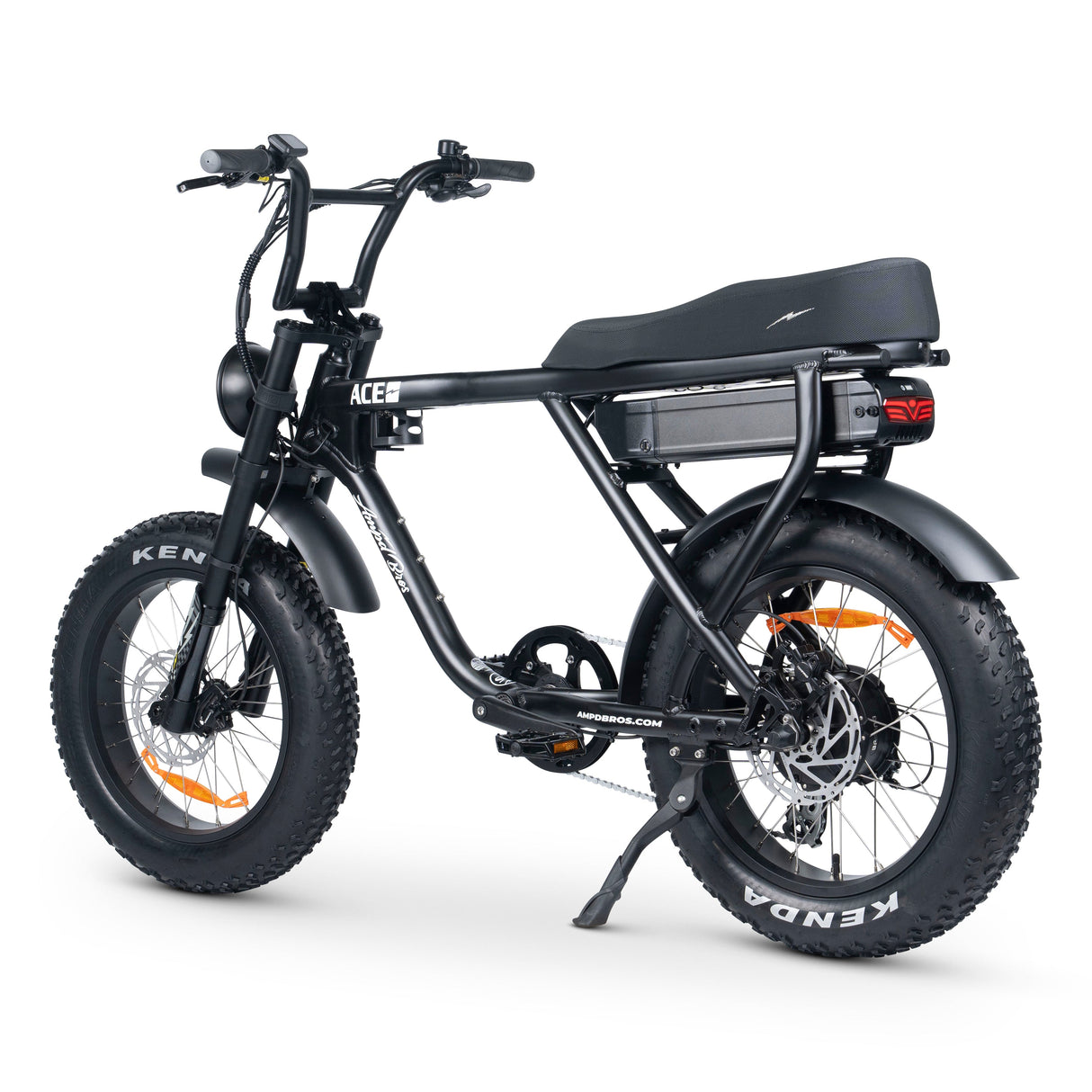

Ampd Bros ACE-X Plus+ High-Performance Fat Tyre Electric Bike, Bafang Motor & Suspension

$3,590.00

Tax included Shipping calculated at checkout.

Colour

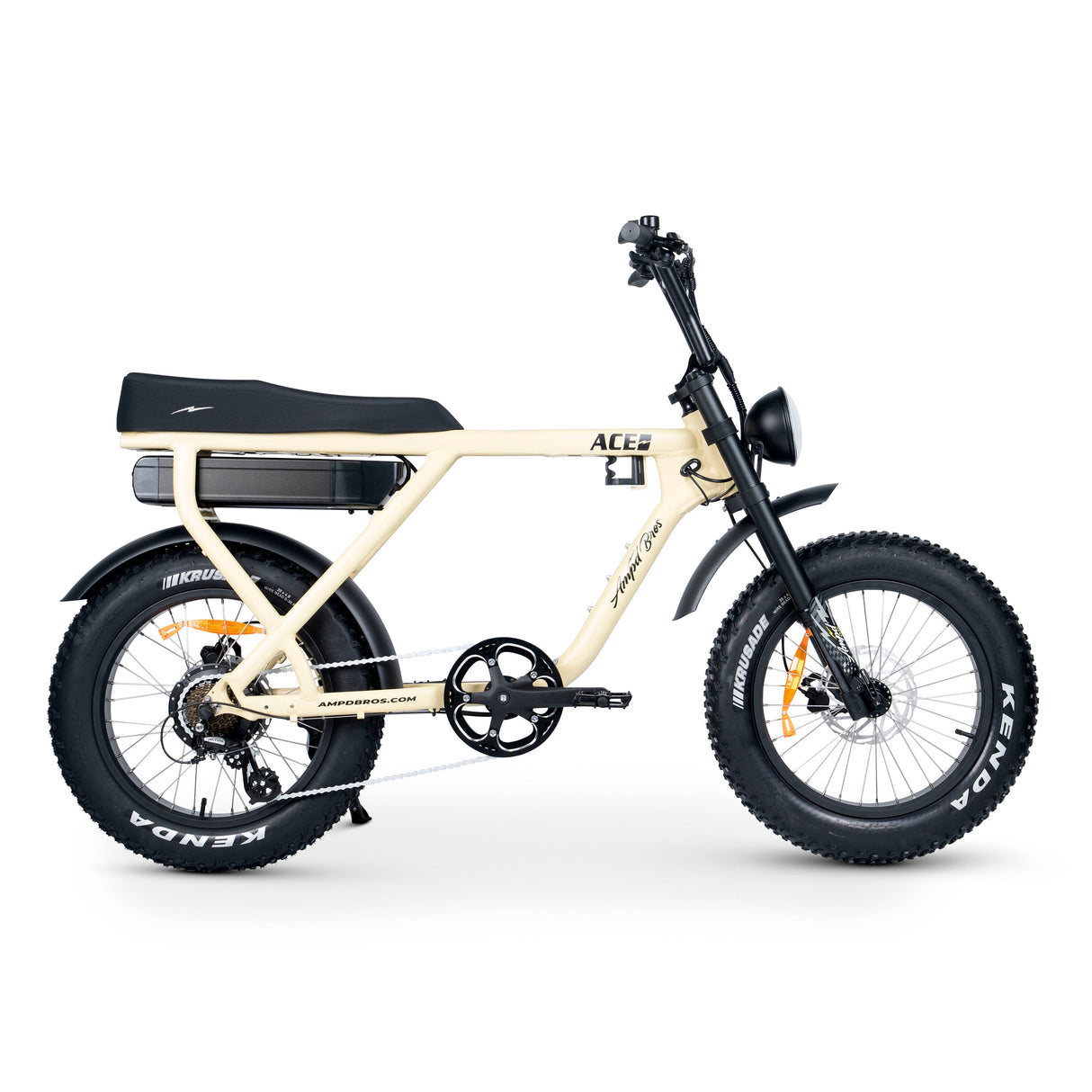

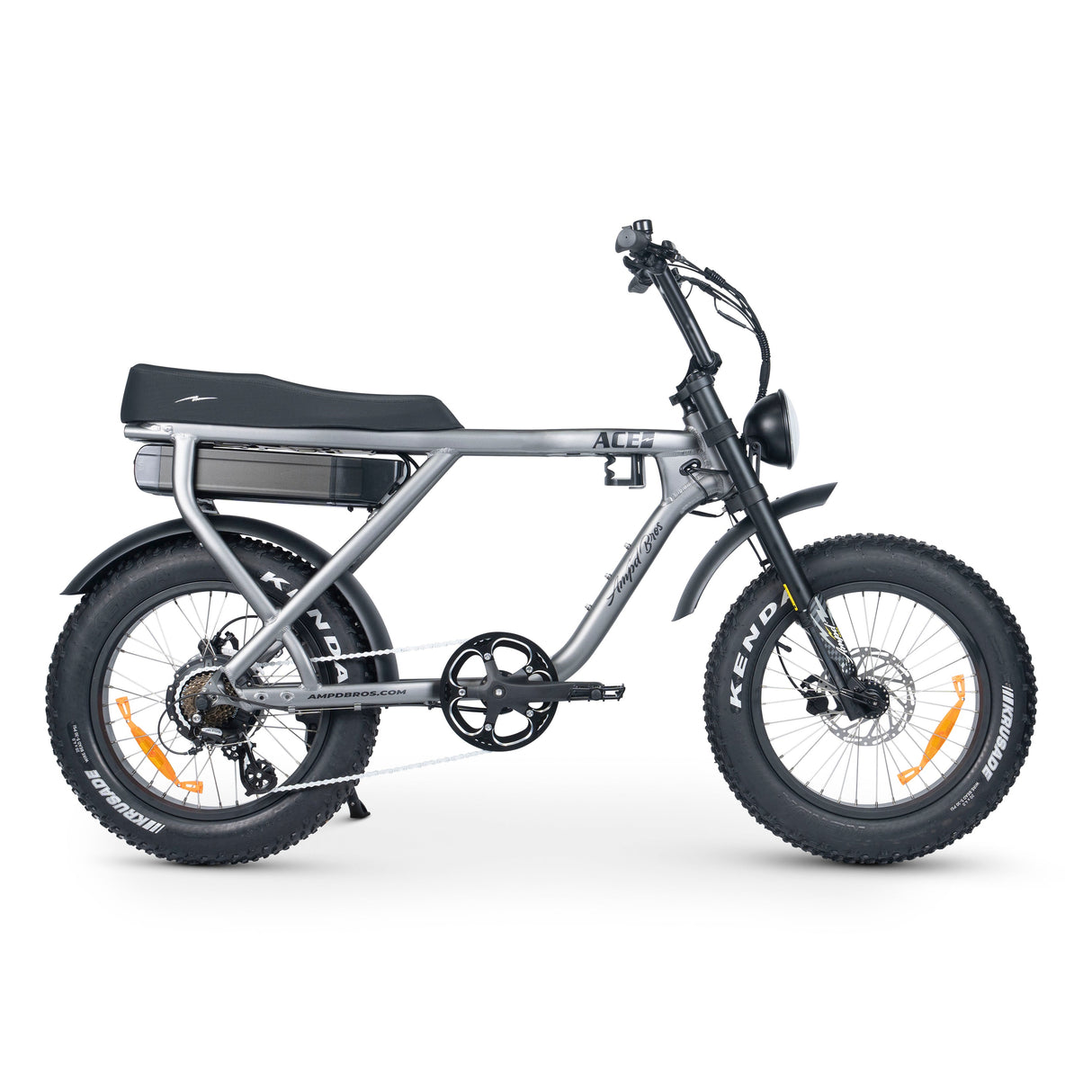

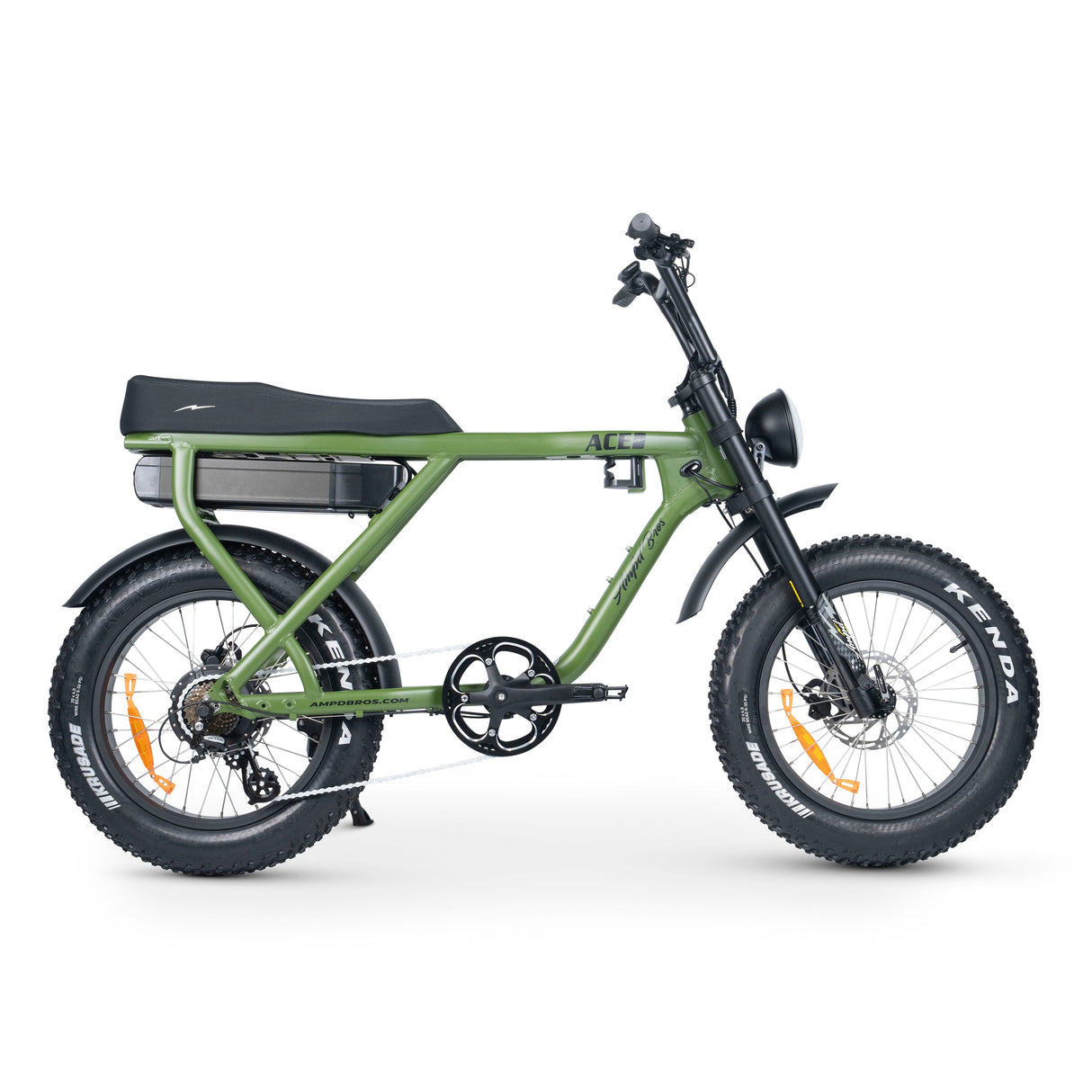

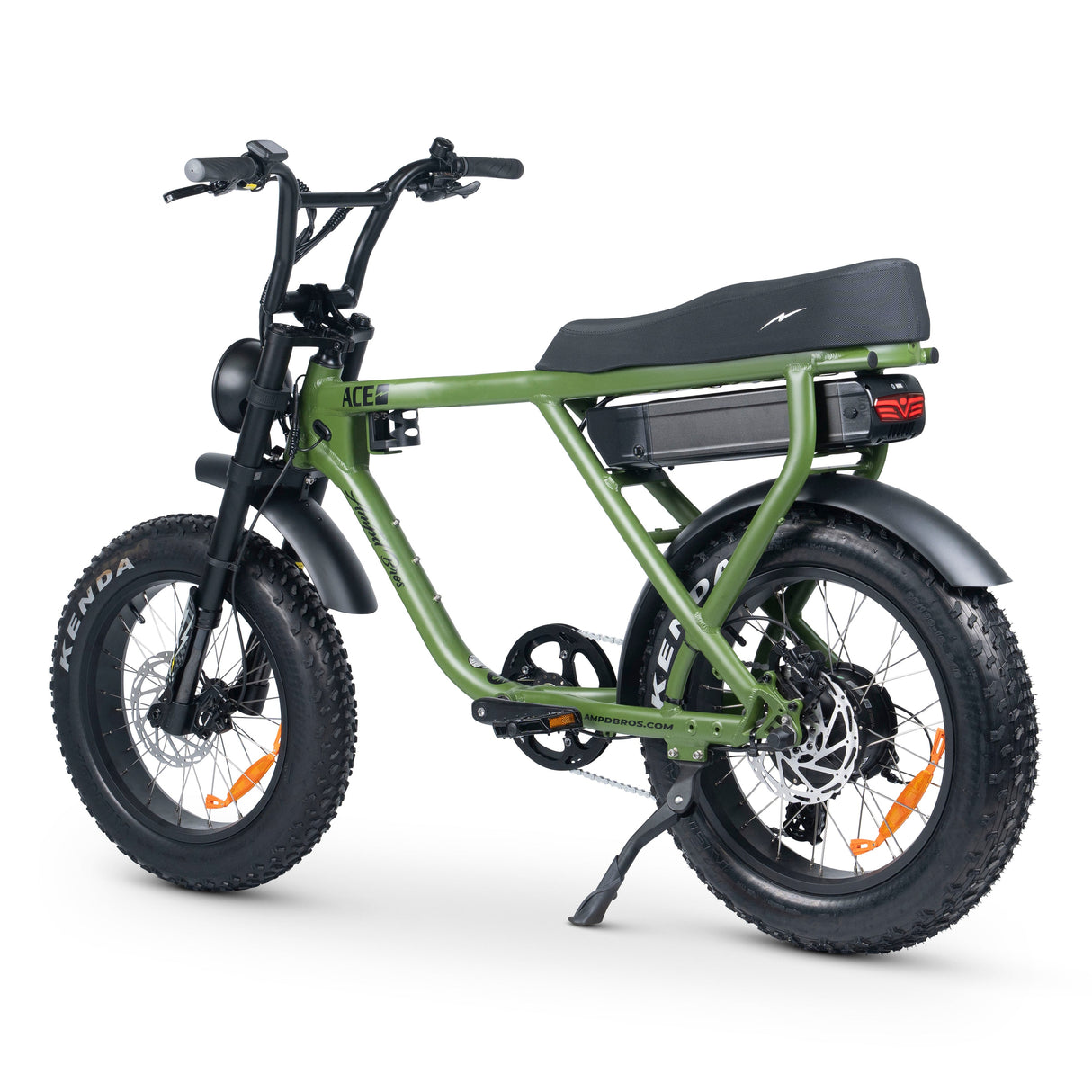

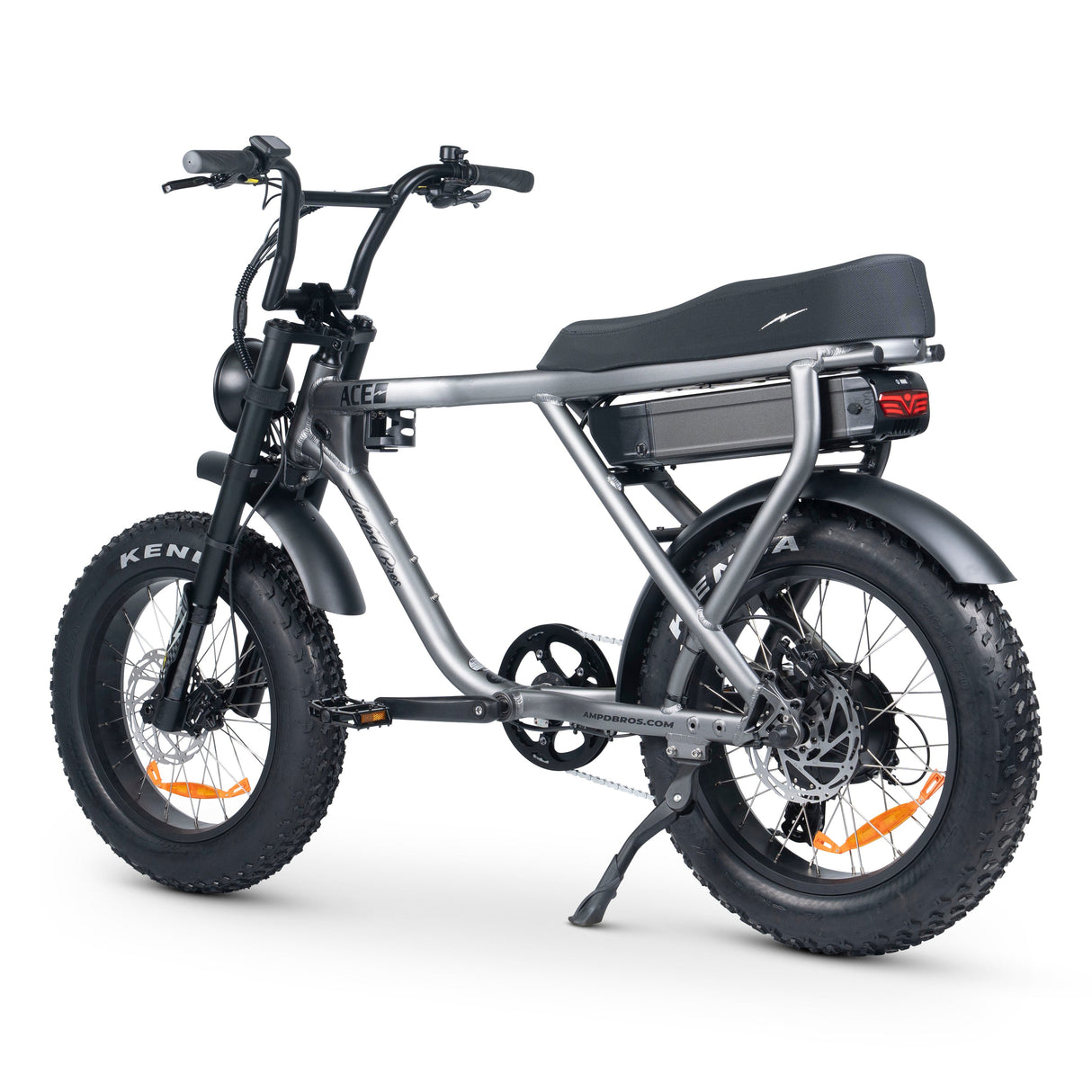

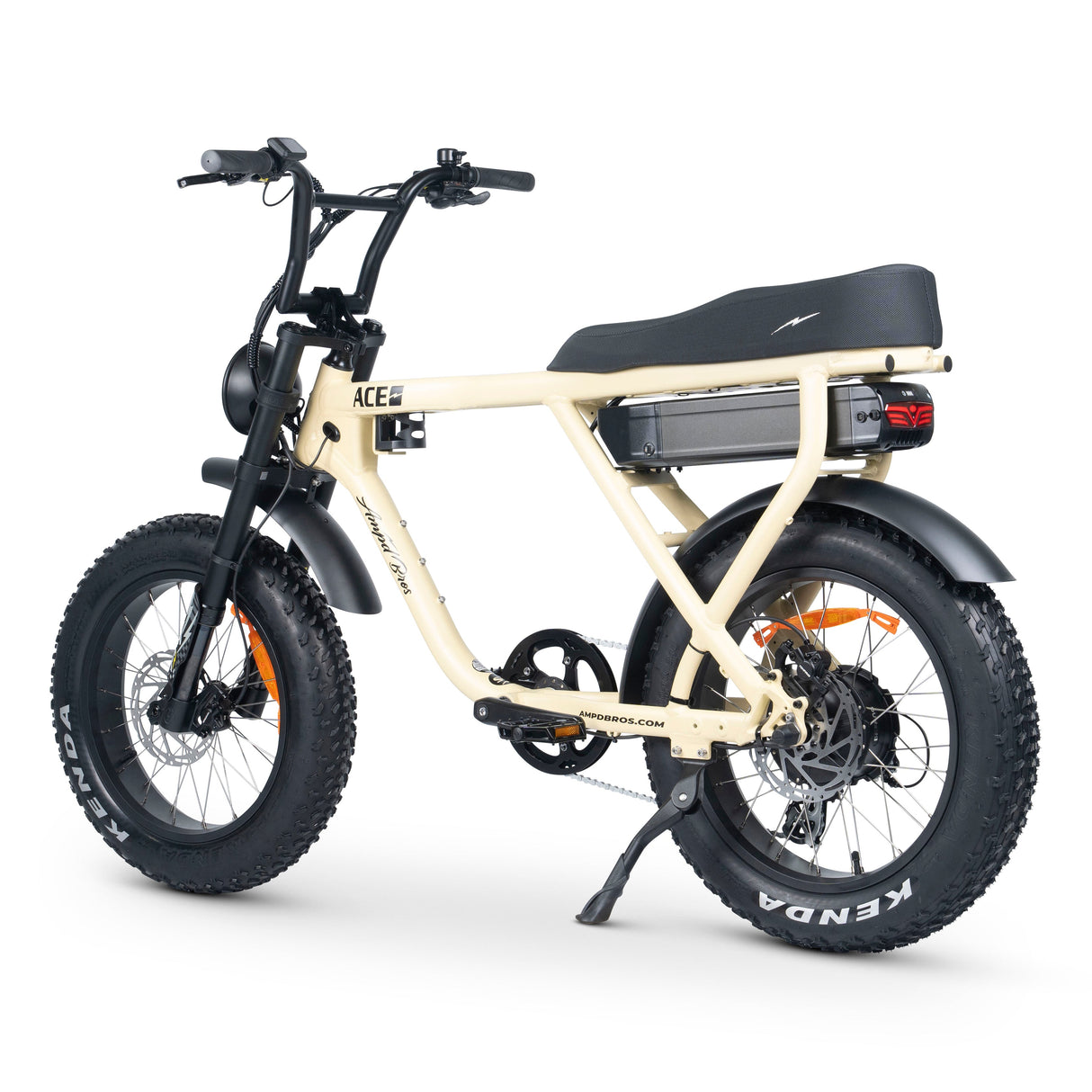

Matte Black Dune Titanium Combat Green

Product variants

Key Bike Specs:

Ride Style: Cruise
Frame: Step-Over
Wheel Size: 20"
Weight (kg): 36
Suspension: Front Suspension
Motor(s): Rear Hub Motor
Max Continuous Rated Power (Watts): 750
Peak Power (Watts): 1000
Torque (Nm): 80
Battery: 52V / 1,040Wh, 20AH
Brakes: Hydraulic 2-Piston with 180mm Rotor

Compliance:

EPAC Compliance: Non-EPAC - For off-road use only
Electrical System Compliance: UL2849 Certified
Charger Compliance: Complies with Australian Standards
Motor Cut-off Speed:

Motor cuts-off automatically at 25km/h in on-road mode/s - and this can be locked with unique password

Hand Throttle Operation (where fitted):

Hand throttle disables automatically at 6km/h in on-road mode/s
Hand throttle not fitted at factory - optional accessory
Walk mode button can be used, and disables automatically at 6km/h

Max Continuous Power Adjustability:

Max continuous power can be locked to 250W - as well as higher levels for offroad use - with unique password

Compliance Description:
This bike does not meet the definition of an Electrically Power-Assisted Cycle (EPAC), and is not intended for use on public roads or shared paths.
It is designed exclusively for off-road and private property environments.
It is not a road-registered vehicle.
Owners and riders are responsible for ensuring their bike and use complies with applicable local laws.
Consult your local authorities and laws before purchasing or operating.

Free Shipping over $149 + Pickup + More!

At Beaches Bike Co, we make it easy to get your new gear fast!

Free Standard Metro Delivery on all orders $149 and over.

For orders under $149, choose:
Standard Post: $12 flat rate (metro only) or
Express Post: $19 flat rate (metro only)

Free Local Drop-Off on the Northern Beaches

Live near us? If you’re within 5km of our Manly store, we’ll personally drop off your order for free.

Just select Local Drop-Off at checkout, and make sure you include a contact phone number and some details.

Free Store Pick-up Options

Manly Store – Pickup during our business hours (see Contact Us page).

See our Shipping Policy for full details.

Easy Returns

At Beaches Bike Co, we want you to love it. If something’s not quite right, we’ll do what we can to make you happy.

Change of Mind Returns:

You may return items within 14 days of receiving your order if you change your mind.

Faulty, Damaged or Incorrect Items:

If your order arrives faulty, damaged or incorrect, please email us at hello@beachesbike.co within 7 days.

See our Returns Policy for full details.

Information requirements for e-micromobility products

Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.

Description

Get ready to redefine adventure with the Ampd Bros ACE-X Plus+ Electric Bike! This isn't just any e-bike - it's a high-octane thrill machine designed to elevate your ride.

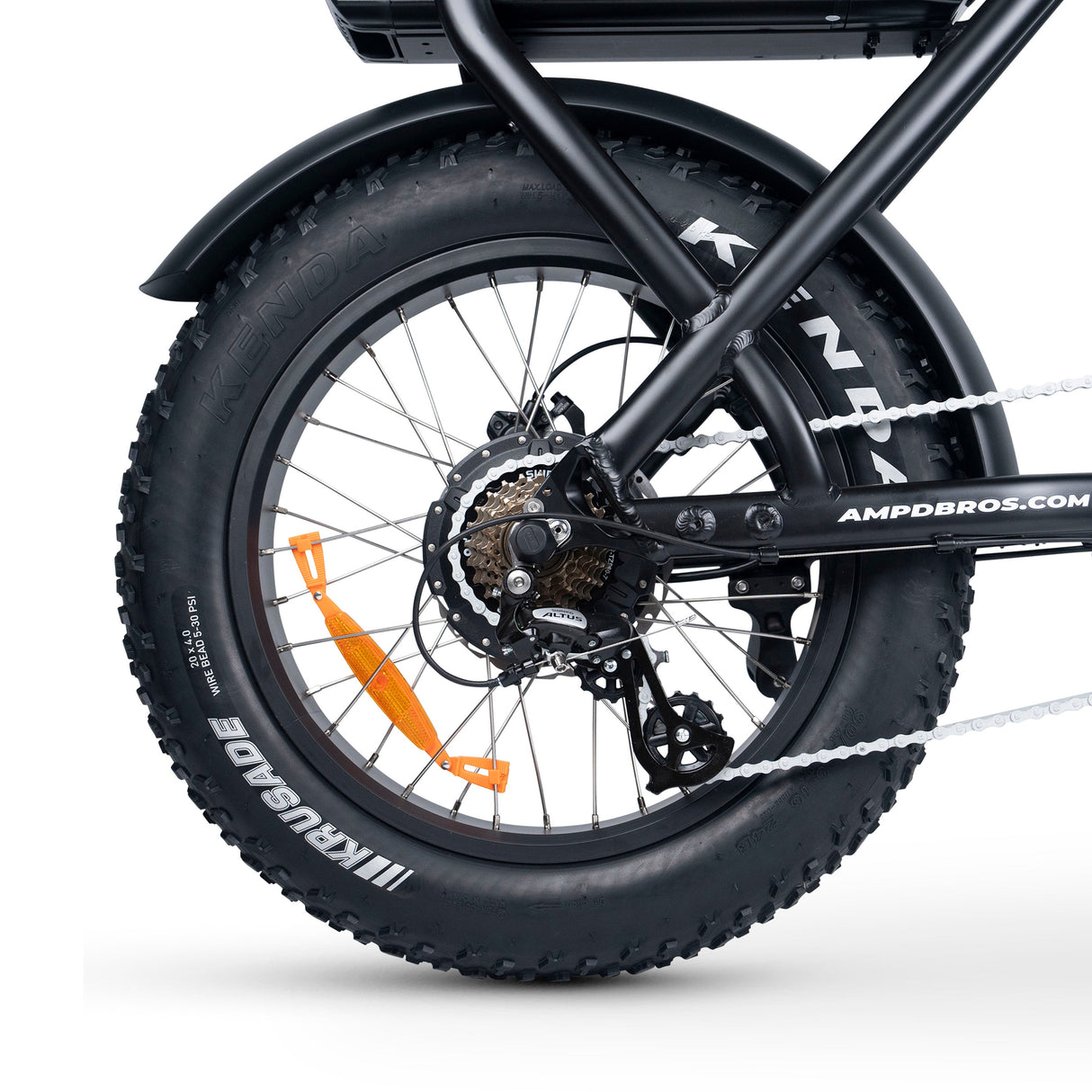

Glide over any terrain thanks to its fantastic front suspension and robust Bafang Rear Hub Motor - making every trail feel like a breeze. Boasting a Shimano 7-speed derailleur and cutting-edge GEN3 Aluminium Battery with 21700 cells, it delivers optimal performance and safety.

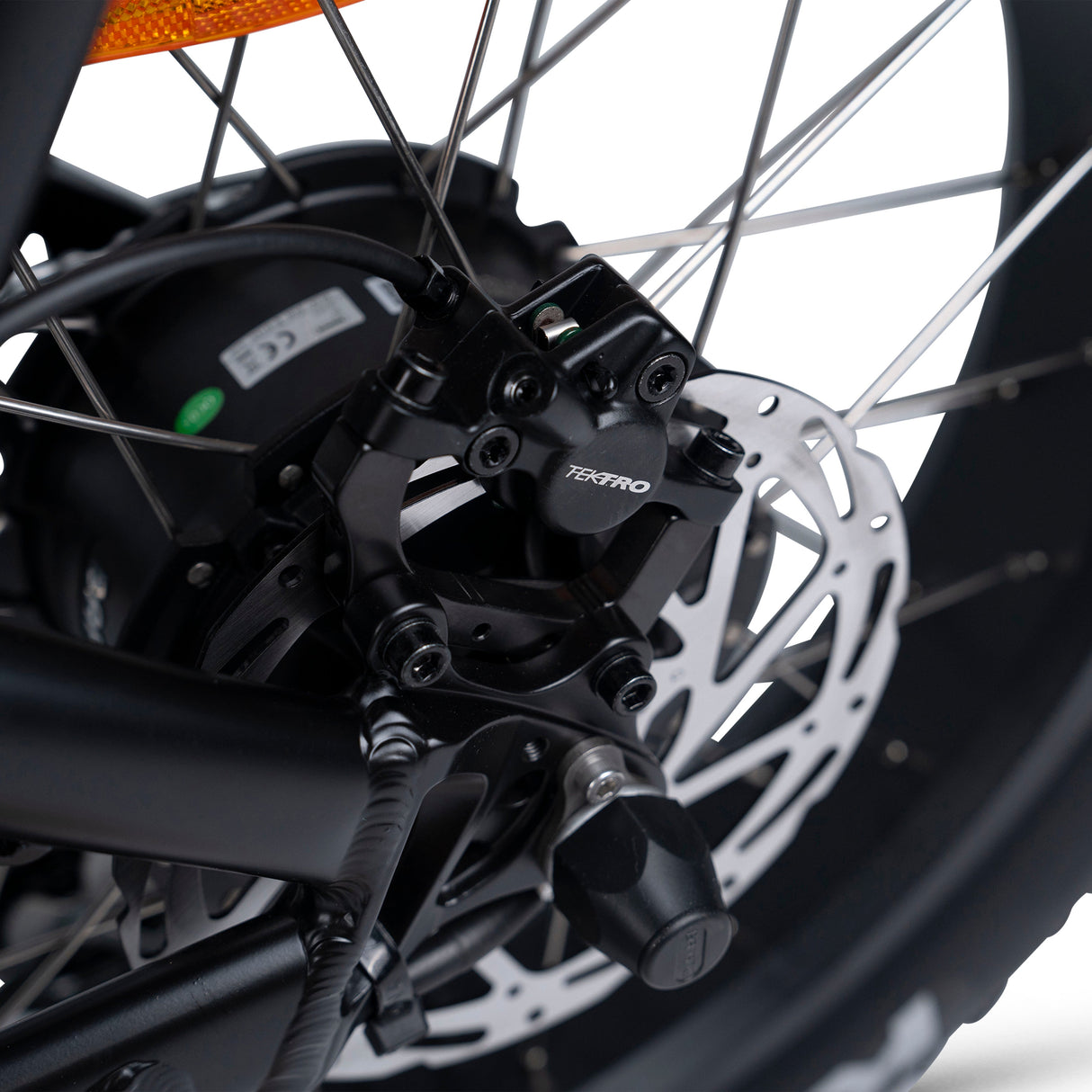

The Custom Master Control unit provides top-tier power and seamless light integration, while 20x4" Kenda Krusade mud tyres and Tektro Hydraulic Disc Brakes ensure a secure journey.

With a spacious seat for two and a removable Samsung battery offering an incredible 80km range, no destination is off-limits. Discover the joy of rapid gear shifts with the Shimano Rapid Fire shifter and Altus transmission.

Experience unparalleled performance, style, and durability – your perfect companion for every escapade!

Motor Type	High Torque Bafang Rear Hub Motor
Battery Capacity	52V 20Ah
Battery Technology	GEN3 Aluminium with 21700 Cells, Smart BMS, Removable Samsung
Maximum Range	80 km (approx.)

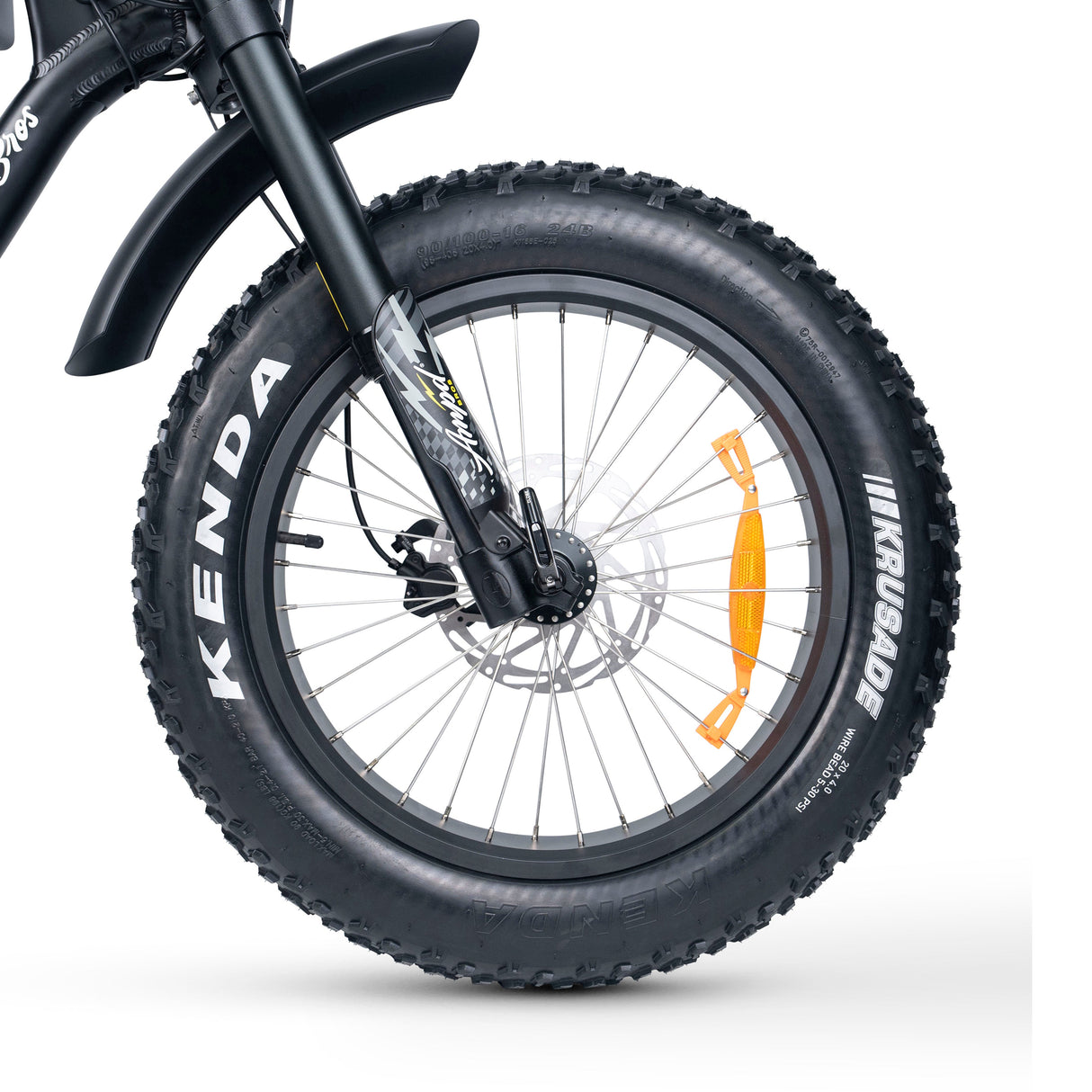

Tyres	20x4" Kenda Krusade Fat Mud Tyres

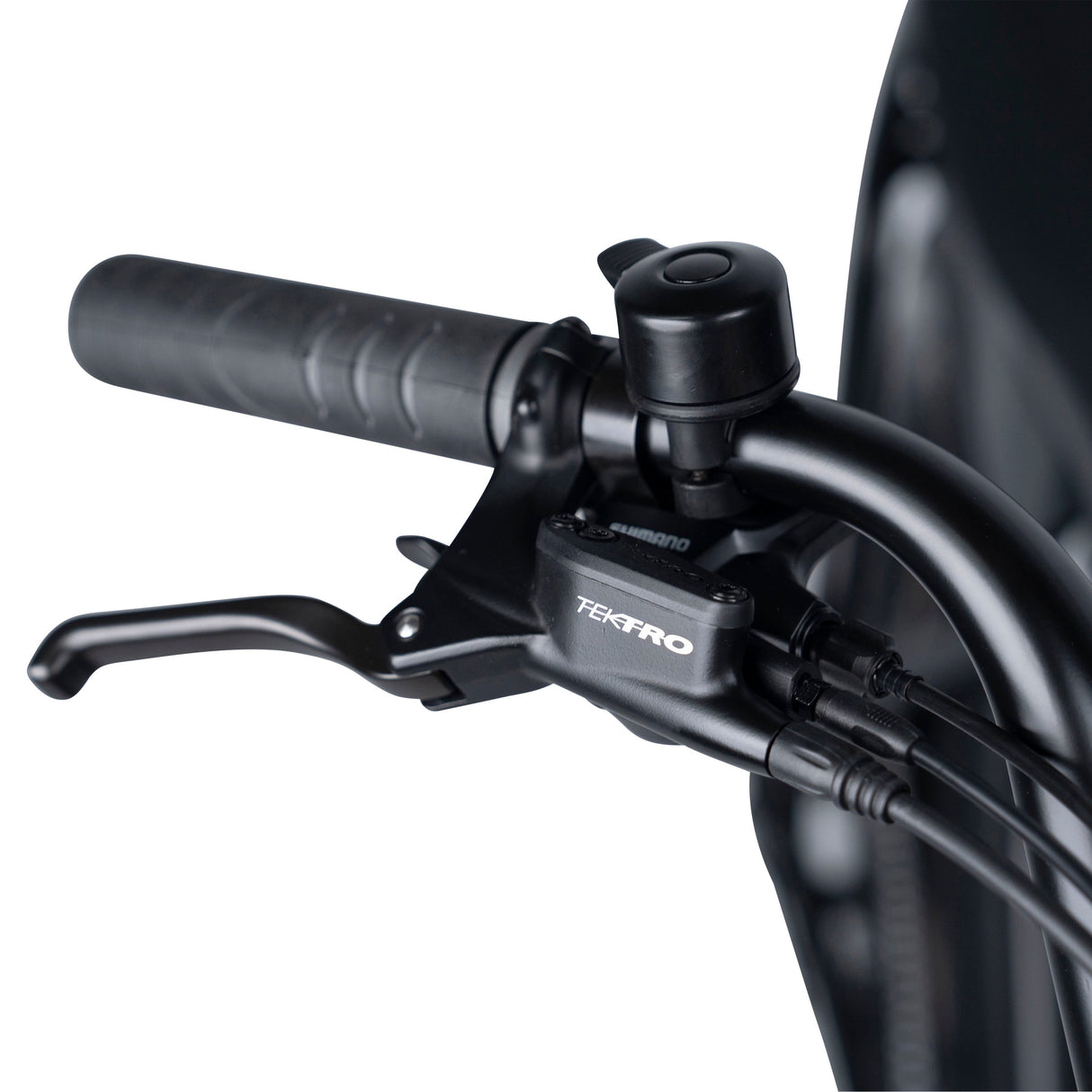

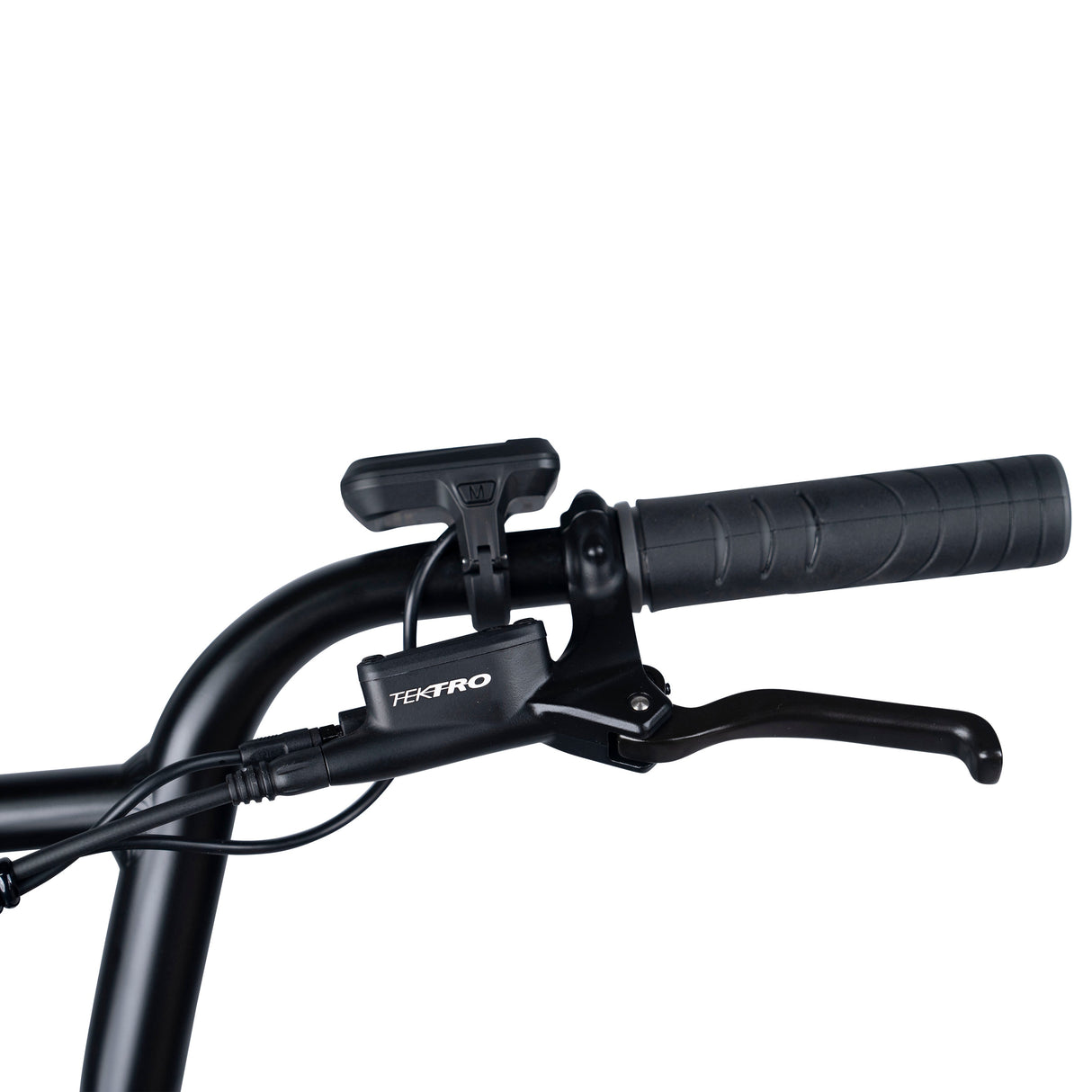

Braking System	Tektro Hydraulic Disc Brakes
Gear System	Shimano 7-Speed Derailleur with Rapid Fire Shifter and Altus Transmission
Suspension	Adjustable Front Suspension Forks
Display	Micro Intelligent Colour Digital Display
Seating Capacity	Two Riders
Product Weight	35 kg
Frame Material	Aluminium Alloy

Specifications

ACE SERIES 4

Range
Ace Mini Models 40km+
Ace Standard Models 60km+
Ace Plus/Cargo Models 80km+

Battery
Ace Mini 48V / 480Wh, 10AH
Standard 52V / 780Wh, 15AH
Plus/Cargo 52V / 1,040Wh, 20AH
Samsung Premium 21700 Lithium cells

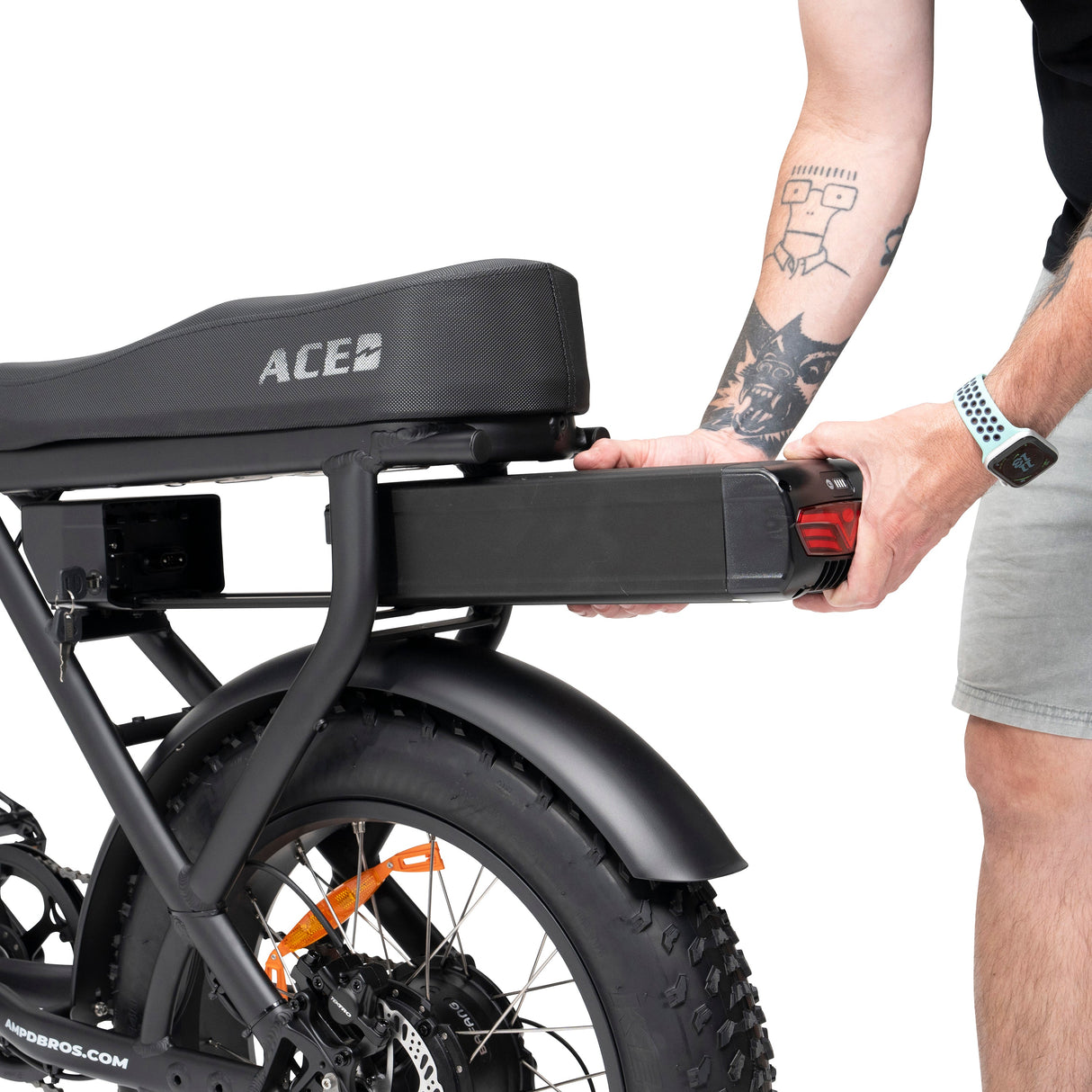

Battery is removable and can be charged in bike or separately.

Motor Drive
All Models Bafang Rear Hub 250W High Torque Motor
Ace Mini & Standard 65N.m
Ace Plus+ & Cargo 80N.m
All Models Restricted to 25km/h

Controller
Ampd Bro's Custom - Best-in-class power density and state-of-the-art motor control algorithms.
Ace Mini & Standard Rated to 500W / Peak 750W+
ACE Plus/Cargo Rated to 750W / Peak 1,000W+

Ride Modes
Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9
Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
Mode 3 Throttle mode: Available when Optioned with the Off Road Throttle Kit

Features
Hill Ability Up to 15º Degree / 25% Incline PAS
Seat Custom Large Black Dual Seat for 2 Riders
Warranty 2 Years (1 Year on Batteries)
Lights Front LED Headlight with DRL

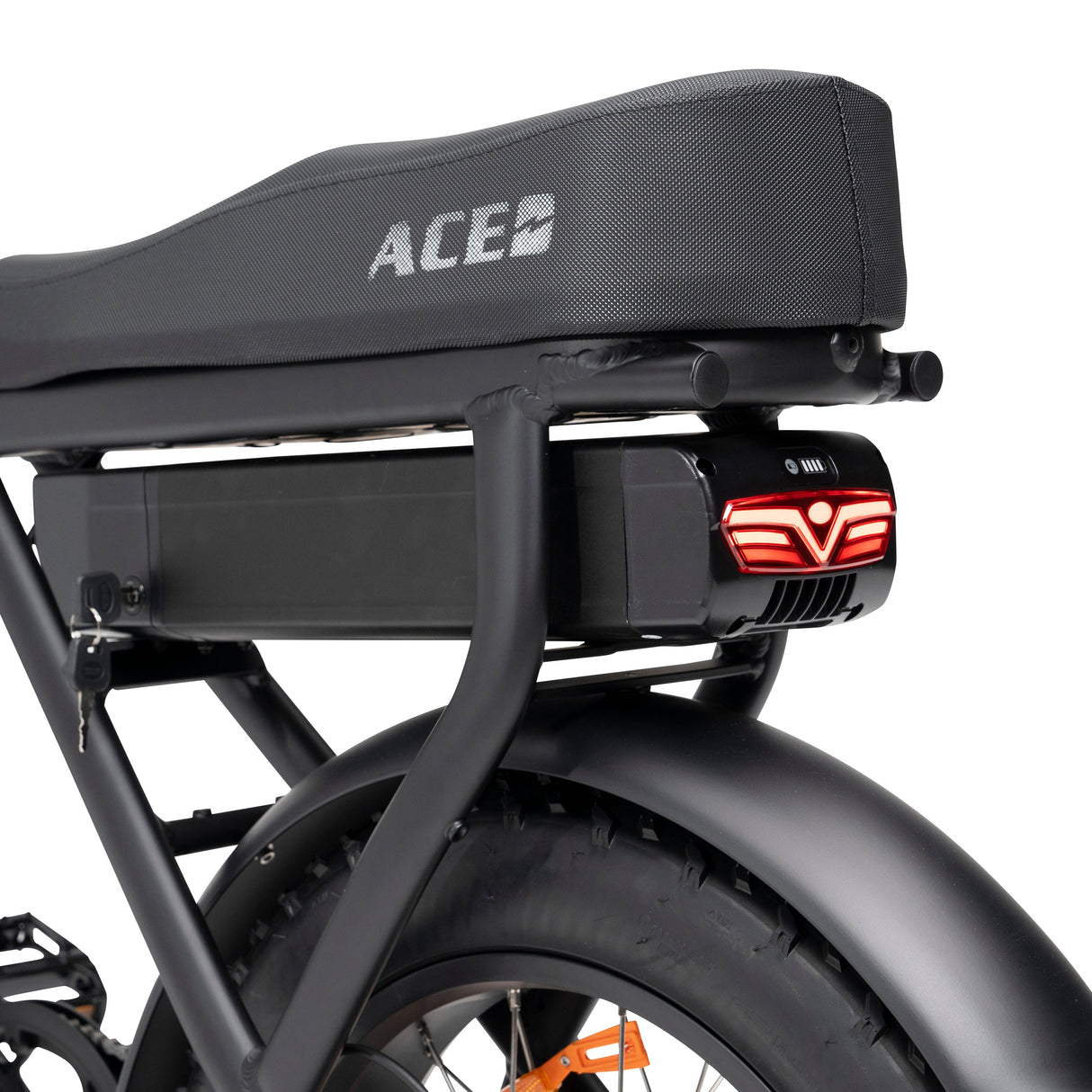

Lights Rear LED Brake Light inbuilt to battery pack
Grips Black Velo Wide Comfort
Bell Yes

Brakes
Ace Mini Ampd Bros Hydraulic with 160mm Disc
Ace Standard/Plus/Cargo Tektro Hydraulic with 180mm Disc
E-Brakes Yes Motor Safety Cut Off

Display

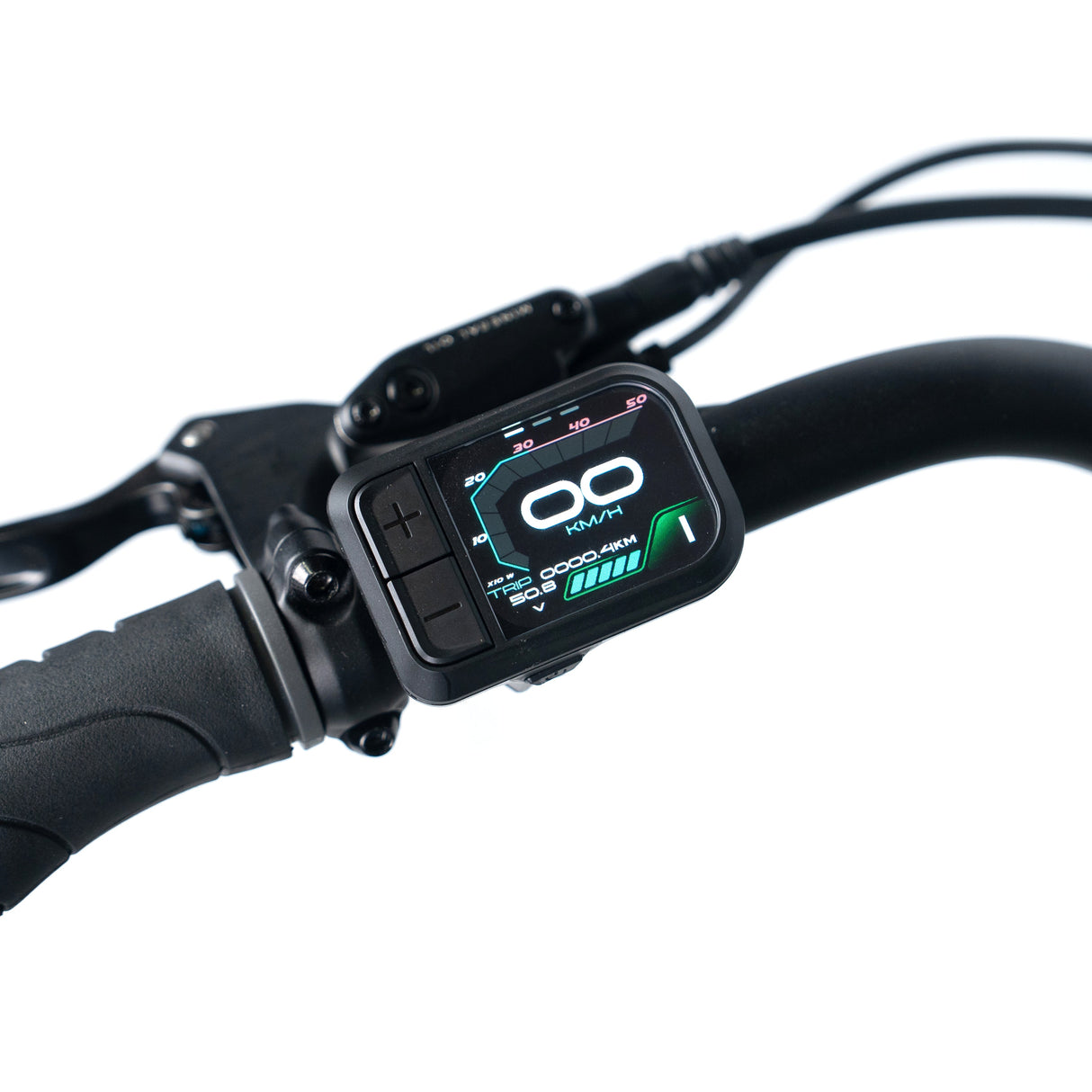

Colour Micro LCD Multi-Function with ODO, Trip, Battery Level, Speed etc

Drivetrain
Ace Mini Transmission Single Fixed Speed (No Shifter/Derailleur)

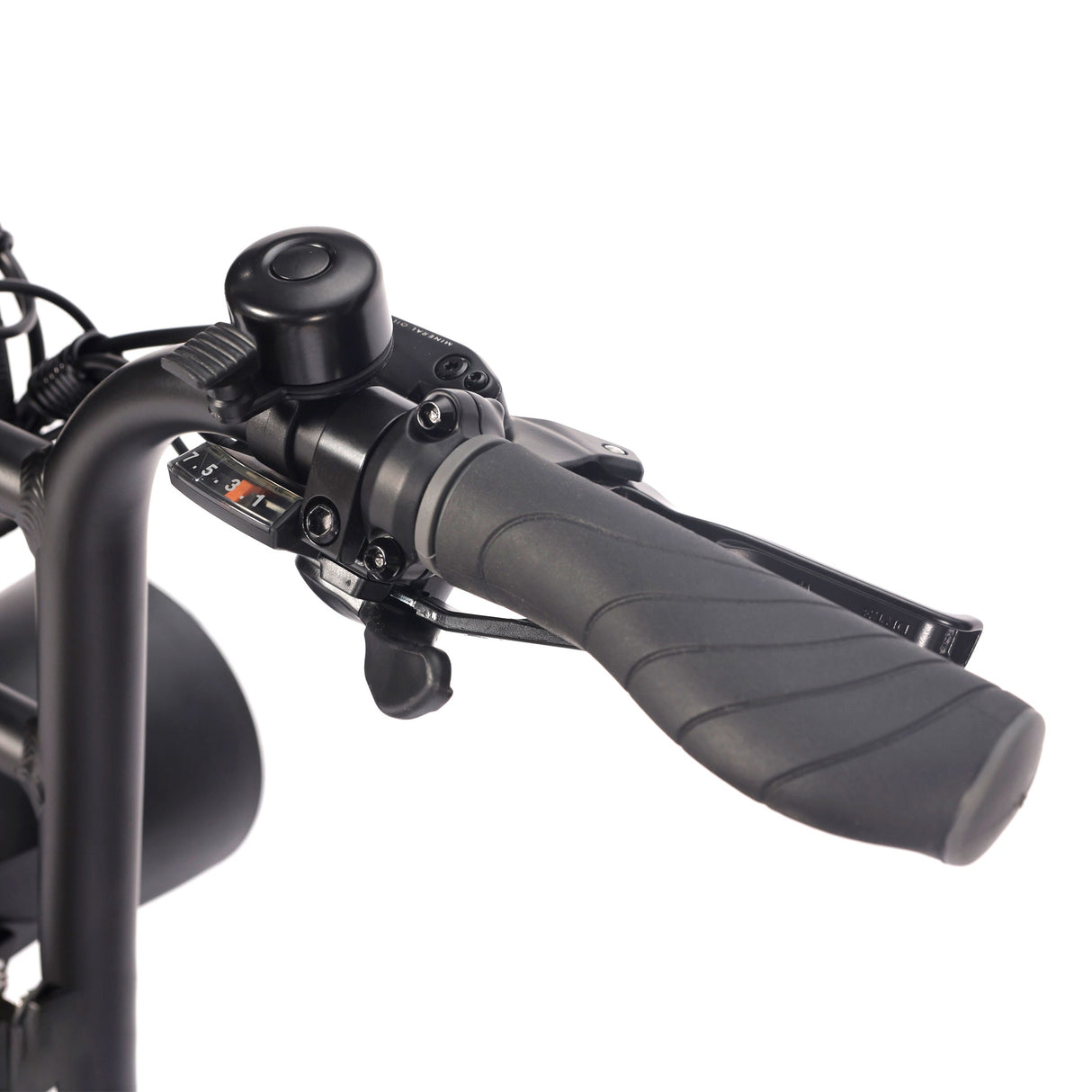

All Other Models Transmission Shimano 7 Speed with Rapid Fire Micro Shifter
Derailleur Shimano Altus
Pedals Wellgo Alloy - Black
Chain KMC Z Series High Performance & Rust Resistant

Construction
Frame Aluminium - "X" Step Over or "S" Step Through Low Bar Designs

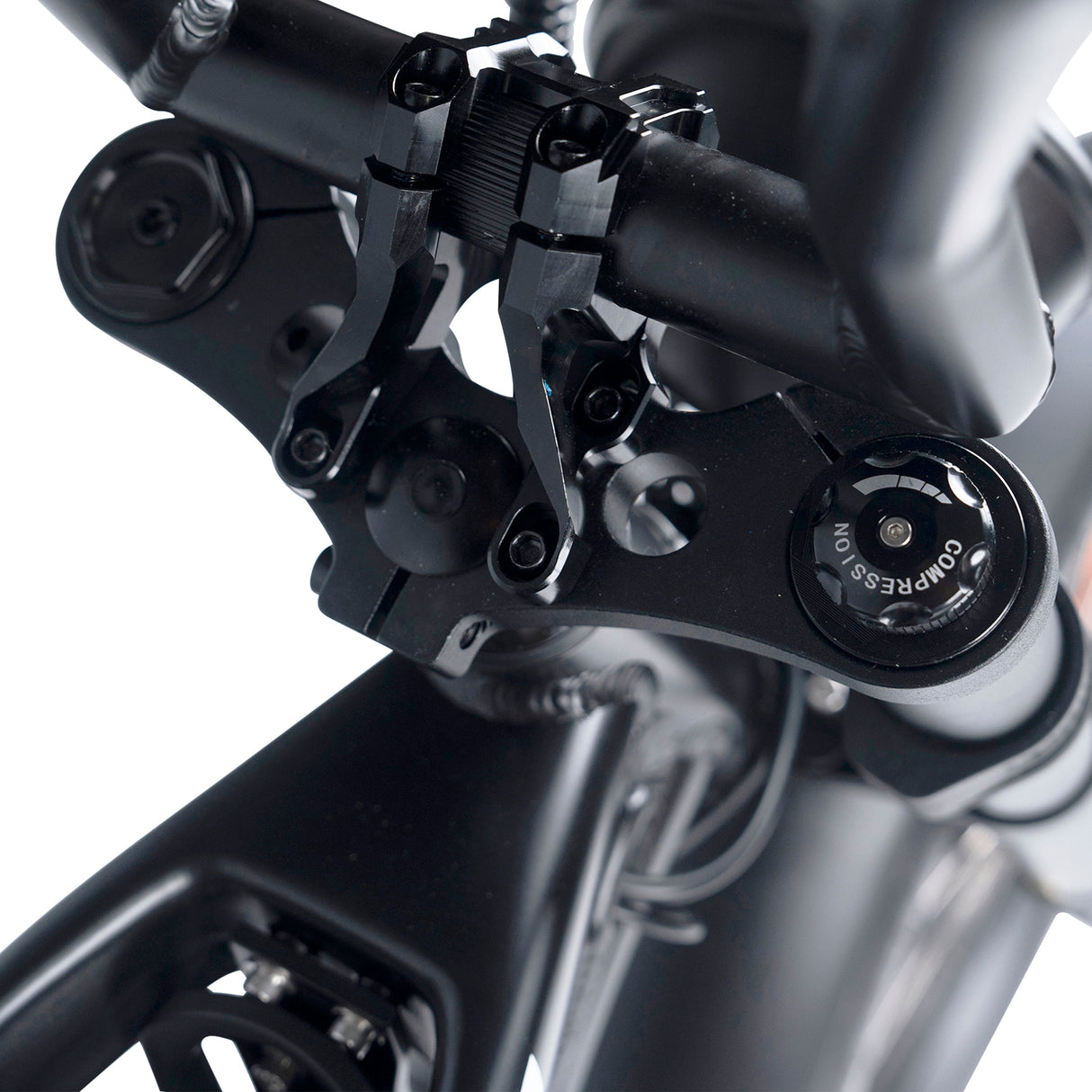

Handlebars Aluminium Motorcycle Inspired with Adjustable Height
Fenders Matte Black Aluminium

Suspension
Mini & Standard Models No Suspension
Plus+ Models Front Custom Tuned Adjustable Fork
Cargo Models Front Independent Suspension Fork (Non Adjustable)

Wheels & Tyres
Ace Mini 16x.40" Innova Mud Tyres
20x4.0" Kenda Krusade Fat Mud Tyres

Charging
5-6hrs 10Ah Batteries with Standard 2A Charger
7-8hrs 15Ah Batteries with Standard 2A Charger
9-10hrs 20Ah Batteries with Standard 3A Charger
Optional 5A Fast Charger Available for 2.5x Faster Charging

Dimensions
Overall Length 1,750 mm
Handlebar Height 1,140 - 1,190 mm
Handlebar Width 660 mm
Seat Height 810 mm Fixed Height
Seat Length 600 mm
Ground Clearance 270 mm
Wheel Base 1,160 mm
Rider Height Ideal for Riders up to 200cm Tall

Ace Mini Dimensions
Overall Length 1,470 mm
Handlebar Height 1040 mm
Handlebar Width 660 mm
Seat Height 770 mm Fixed Height
Seat Length 370 mm
Ground Clearance 190 mm
Wheel Base 990 mm
Rider Height Ideal for Riders up to 170cm Tall

Weights
N.W of 10Ah Battery 3.2kg
N.W of 15Ah Battery 4.34 kg
N.W of 20Ah Battery 5.12 kg
N.W of Standard ACE + Battery 32.3 kg
N.W of ACE Plus+ Battery 36 kg
N.W of ACE Mini + Battery 29 kg
N.W of ACE Cargo + Battery 40.5 kg
Max Loading 180 kg
ACE Mini Max Loading 100 kg

Inclusions
In Box Bike, Battery, Charger, Front Headlight, Basic Tool Kit, Manual, Pedals, Fenders, Seat & Kick Stand.

*Range Achievable may vary based on loading, motor use, throttle/pas, terrain, weather conditions and many other factors.
